Hose Connection Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

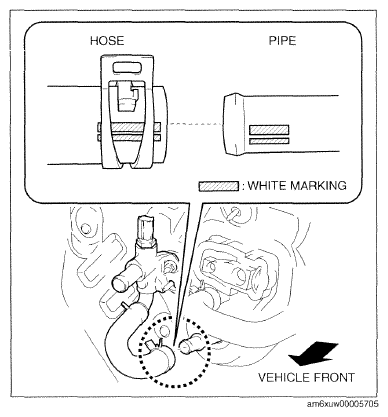

  1. Align the white marks on the hose with the white marks on the pipe and connect them.
    Fig 1: Aligning Hose And Pipe
    G09785521Courtesy of MAZDA MOTORS CORP.
