Automatic Transaxle Component Location Index

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

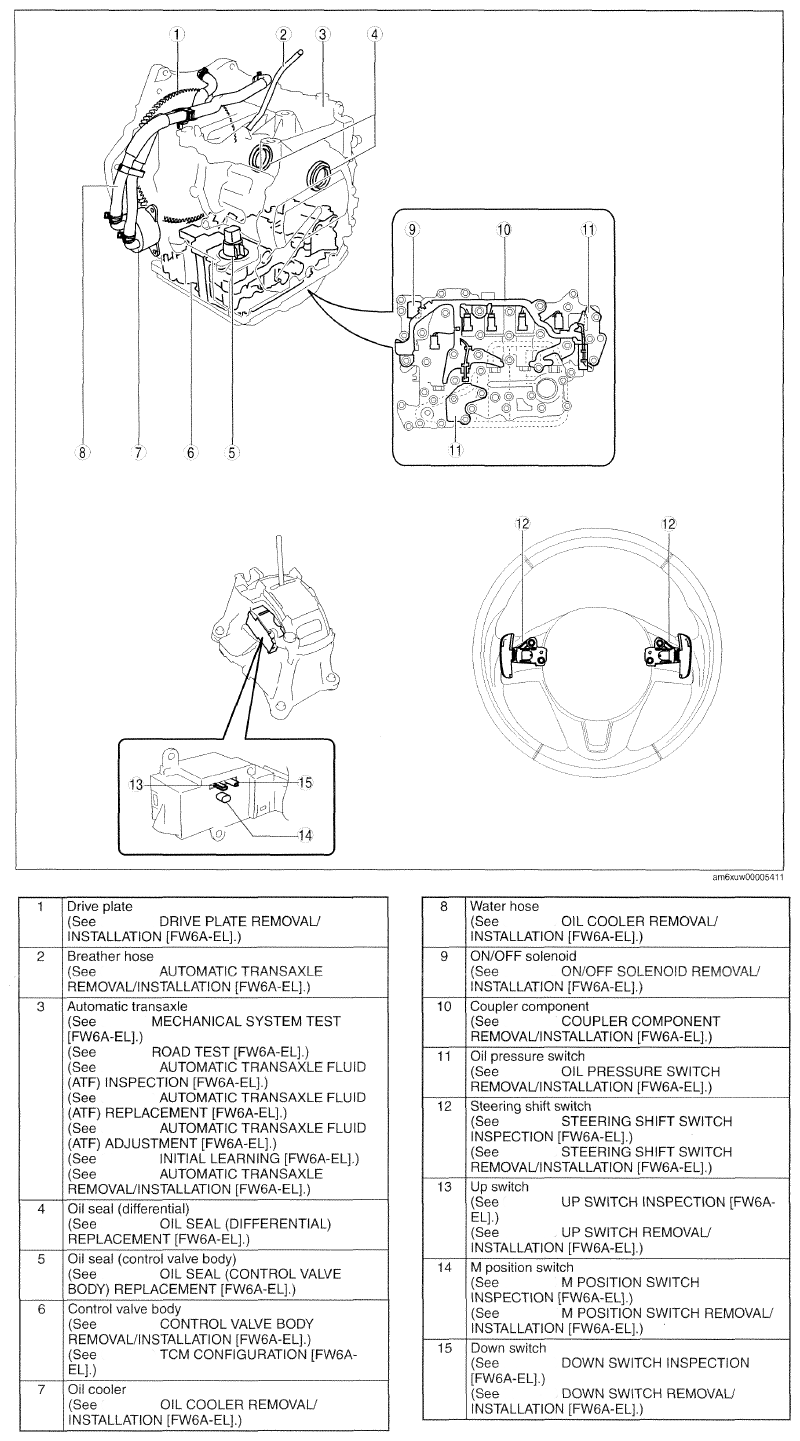

Fig 1: Automatic Transaxle Component Location Index (FW6A-EL)
G09786041Courtesy of MAZDA MOTORS CORP.
