Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

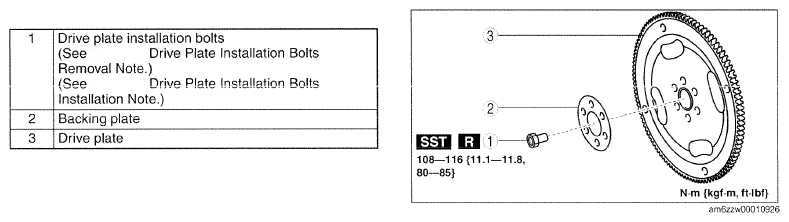

    Fig 1: Drive Plate, Backing Plate And Bolts With Torque Specifications
    G09786161Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
