Front Heat Duct Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side wall (driver-side). (See SIDE WALL REMOVAL/INSTALLATION .)

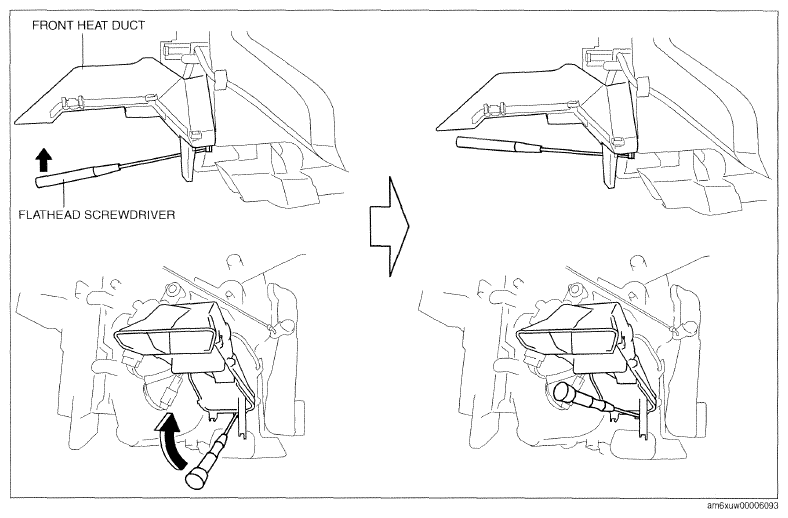

Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrow.

Fig 1: Removing Side Wall (Driver-Side)
Courtesy of MAZDA MOTORS CORP.

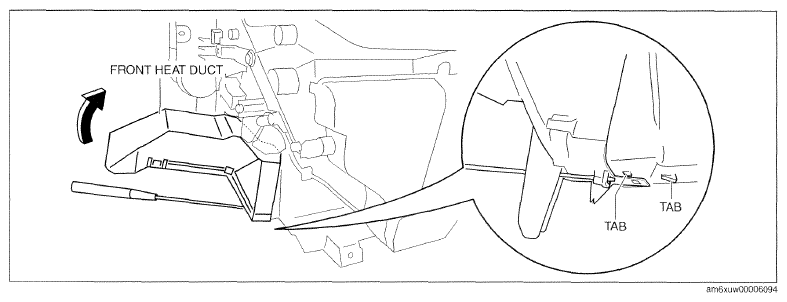

Detach the tab while lifting up the front heat duct in the direction of the arrow.

Fig 2: Lifting Up Front Heat Duct
Courtesy of MAZDA MOTORS CORP.
Remove the front heat duct.
Install in the reverse order of removal.

Fig 3: Removing Front Heat Duct
Courtesy of MAZDA MOTORS CORP.
