Automatic Transaxle Symptom Troubleshooting
>>
Quick Diagnosis Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Quick Diagnosis Chart

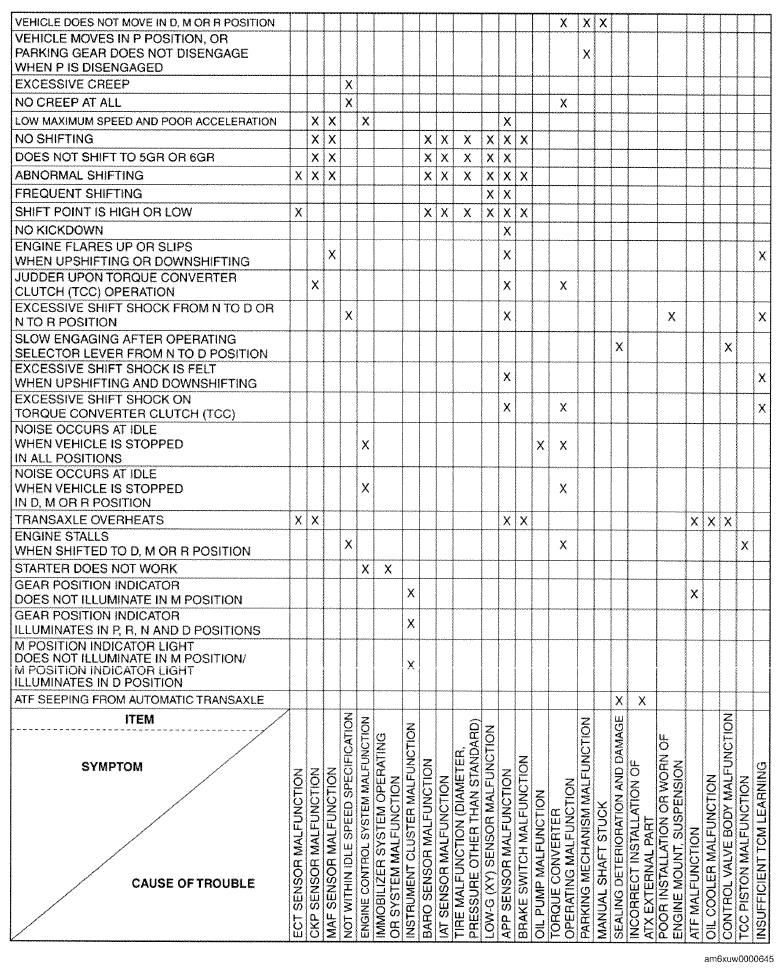

Fig 1: Quick Diagnosis Chart (FW6A-EL)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
