Automatic Transaxle Control System Wiring Diagram

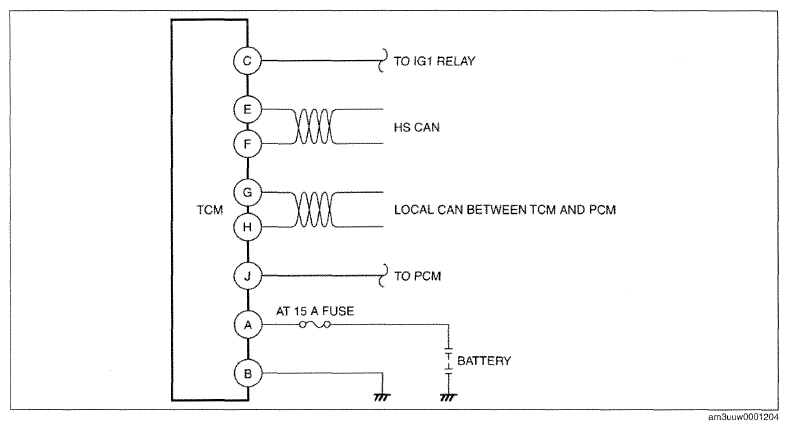

Fig 1: Automatic Transaxle Control System - Wiring Diagram (FW6A-EL)
G09771093Courtesy of MAZDA MOTORS CORP.
