| DETECTION CONDITION |
- The PCM monitors the input signal from the cruise control switch. If the PCM detects that the cruise control switch voltage is above 4.84 V
, the PCM determines that the cruise control switch circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |
- Clock spring connector or terminals malfunction
- Clock spring malfunction
- Cruise control switch malfunction
- PCM connector or terminals malfunction

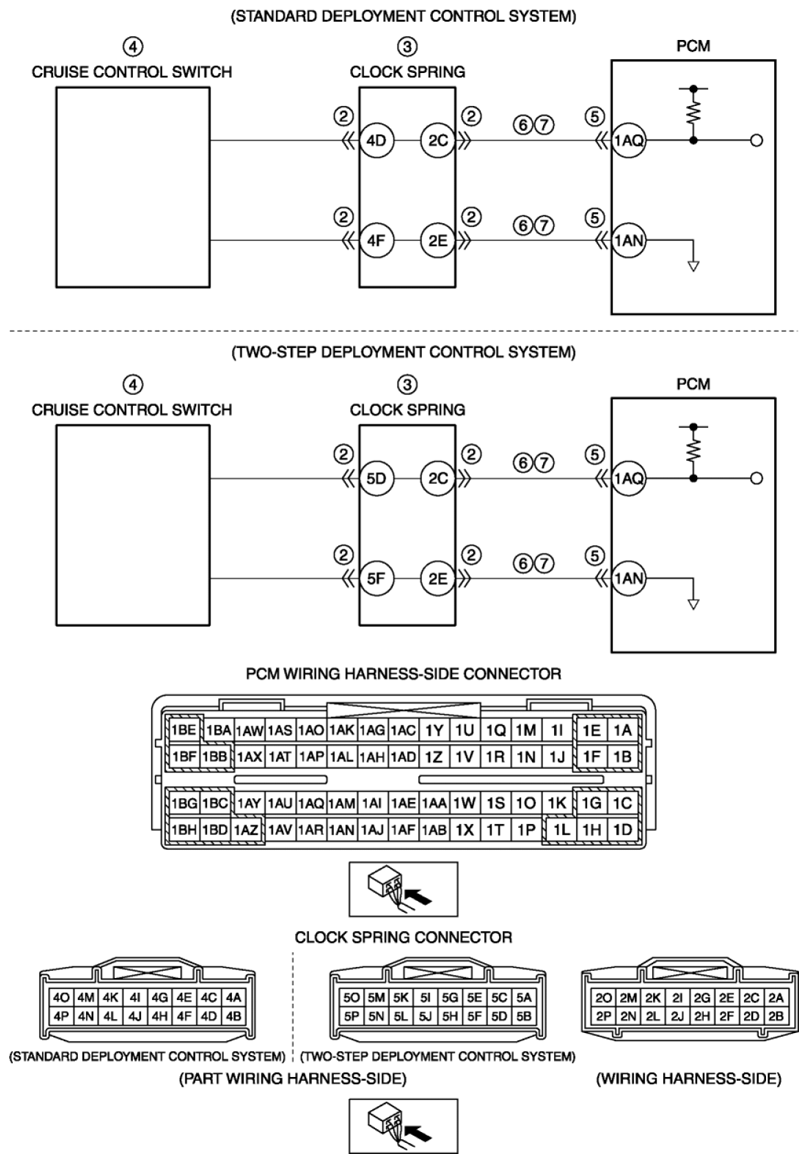

- Short to power supply in wiring harness between the following terminals:
- Clock spring terminal 2C-PCM terminal 1AQ
- Clock spring terminal 2E-PCM terminal 1AN
- Open circuit in wiring harness between the following terminals:
- Clock spring terminal 2C-PCM terminal 1AQ
- Clock spring terminal 2E-PCM terminal 1AN
- PCM malfunction
|
