Exhaust System Insulator Removal/Installation Note: Notes

  1. Remove the member.
    Fig 1: Member Bolts With Torque Specifications
    G08150194Courtesy of MAZDA MOTORS CORP.
  2. Remove the exhaust system insulator in the order shown below.
  3. Install in the reverse order of removal.

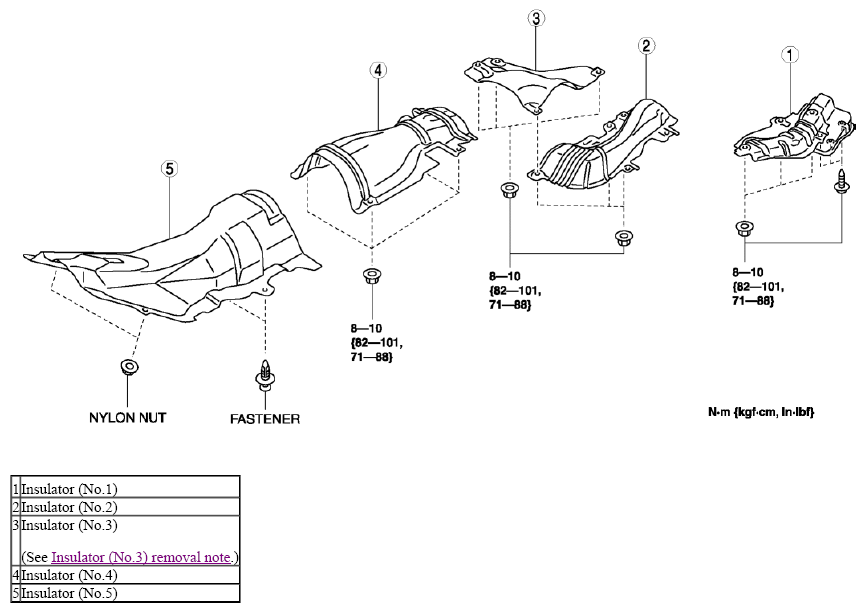

    Fig 2: Exhaust System Insulator Fastener And Nylon Nuts With Torque Specifications
    G08150195Courtesy of MAZDA MOTORS CORP.
