Airflow Mode Main Link Installation Note

CAUTION:
  • Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.
  1. Push and hold each airflow mode sub link in the direction of the arrow.

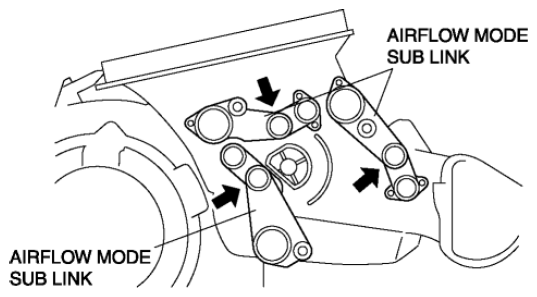

    Fig 1: Locating Airflow Mode Sub Link
    G08150903Courtesy of MAZDA MOTORS CORP.
  2. Set the airflow mode main link to the A/C unit as shown below.
  3. Press the airflow mode main link lightly to the A/C unit it in the direction shown by the arrow, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.
  4. Rotate airflow mode main link and verify that each mode is accessed properly.

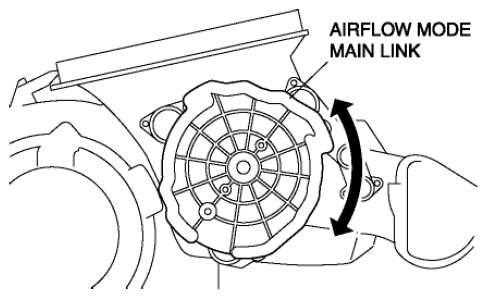

    Fig 2: Rotating Airflow Mode Main Link
    G08150904Courtesy of MAZDA MOTORS CORP.
