Troubleshooting Procedure

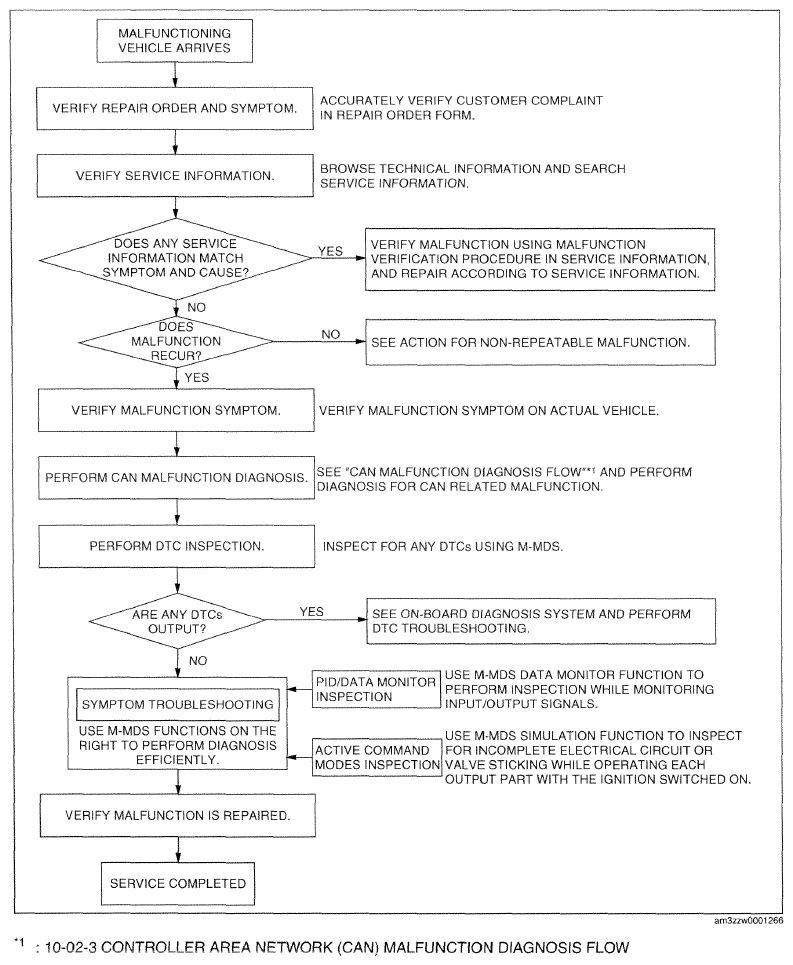

Fig 1: Troubleshooting Chart
G09757873Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
