Radiator Removal Note

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
  2. Lift the radiator and remove it from the radiator installation holes on the shroud panel.
  3. Move the radiator and condenser to the engine side.
  4. Remove the two bolts (lower side) which secure the condenser to the radiator.

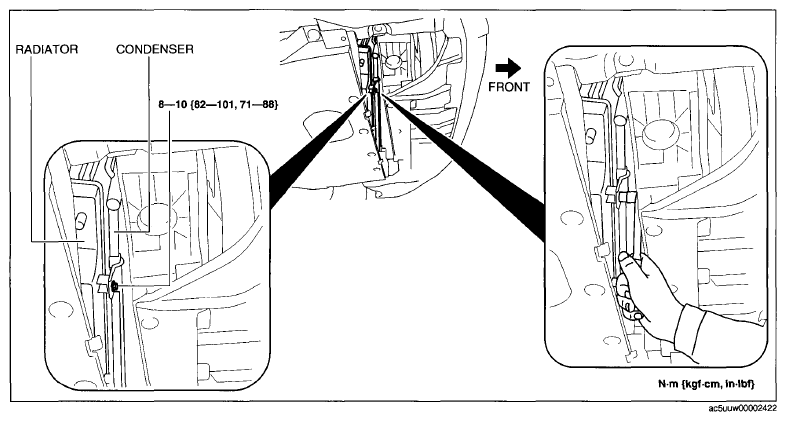

    Fig 1: Removing Lower Side Bolts Securing Condenser To Radiator With Torque Specifications
    G09074378
  5. Remove the two bolts (upper side) which secure the condenser to the radiator.
  6. Remove the radiator from above the engine compartment.
    Fig 2: Condenser To Radiator Securing Bolts With Torque Specifications
    G09074379
