Selector Cable Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Perform the following procedure to remove the selector cable (selector lever side).
    1. Remove the selector lever knob, (type B) (See SELECTOR LEVER REMOVAL/INSTALLATION (TYPE B) .)
    2. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)

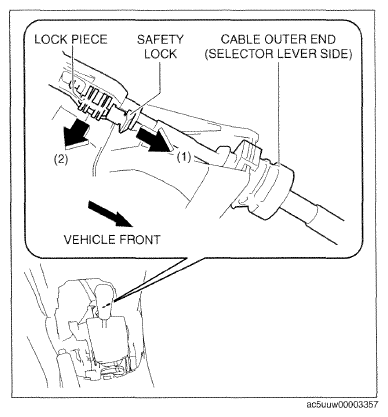

    3. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See SELECTOR CABLE (SELECTOR LEVER SIDE) INSTALLATION NOTE .)
      Fig 1: Pulling Out Safety Lock
      G09759695Courtesy of MAZDA MOTORS CORP.
    4. While pressing the cable outer end tab (selector lever side) in the direction of the arrow (3) shown in the figure, lift up cable outer end (selector lever side) in the direction of the arrow (4) shown in the figure to detach the cable outer end tab (selector lever side) from the bracket.
    5. Remove the cable outer end (selector lever side) from the bracket.
      Fig 2: Lifting Up Cable Outer End (Selector Lever Side)
      G09759696Courtesy of MAZDA MOTORS CORP.

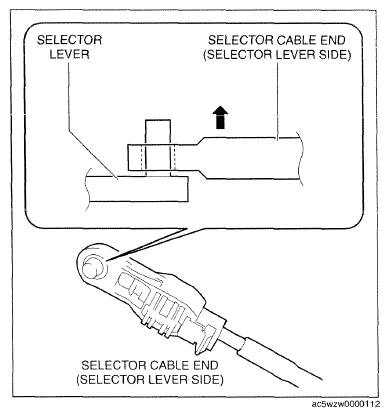

    6. Remove the selector cable end (selector lever side) from the selector lever.
  3. Perform the following procedure to remove the selector cable (transaxle side).
    1. Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
    2. Remove the battery tray. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
      Fig 3: Removing Selector Cable End From Selector Lever (Selector Lever Side)
      G09759697Courtesy of MAZDA MOTORS CORP.

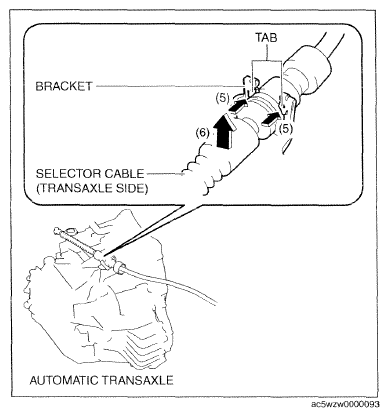

    3. While pressing the bracket tab in the direction of the arrow (5) shown in the figure, lift up the cable outer end (transaxle side) in the direction of the arrow (6) shown in the figure to detach the bracket tab from the cable outer end (transaxle side).
    4. Remove the cable outer end (transaxle side) from the bracket. (See CABLE OUTER END (TRANSAXLE SIDE) INSTALLATION NOTE .)
      Fig 4: Lifting Up Cable Outer End (Transaxle Side)
      G09759698Courtesy of MAZDA MOTORS CORP.
    5. Remove the clip from the selector cable end (transaxle side).
      Fig 5: Identifying Selector Cable End And Clip
      G09759699Courtesy of MAZDA MOTORS CORP.
    6. Remove the selector cable end (transaxle side) from the manual shaft lever.
  4. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
    Fig 6: Identifying Selector Cable End And Clip
    G09759700Courtesy of MAZDA MOTORS CORP.

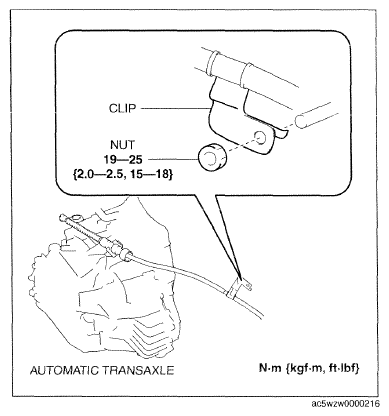

  5. Remove the clip as shown in the figure and remove the nuts.
    Fig 7: Selector Lever Clip With Torque Specifications
    G09759701Courtesy of MAZDA MOTORS CORP.
  6. Remove the grommet as shown in the figure and remove the nuts.
  7. Install in the reverse order of removal.
    Fig 8: Selector Lever Grommet With Torque Specifications
    G09759702Courtesy of MAZDA MOTORS CORP.
