Heated Oxygen Sensor (Ho2S) Removal/Installation

WARNING:

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

• Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the exhaust manifold and silencer.

NOTE:

• If penetrant lubricating spray penetrates the airflow hole of the HO2S, it could cause interference with the HO2S function.

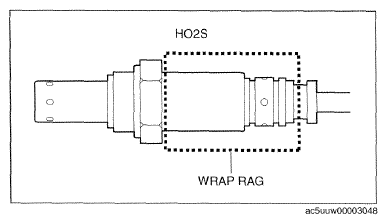

• When removing the HO2S, wrap a rag around the lower position so that penetrant lubricating spray does not get sprayed into the airflow hole.

Fig 1: Identifying Heated Oxygen Sensor

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
2. Lift up the vehicle.
3. Remove the floor under cover. (With floor under cover) (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
4. Remove the insulator and brace bar. (2WD) (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
5. Disconnect the HO2S connector.

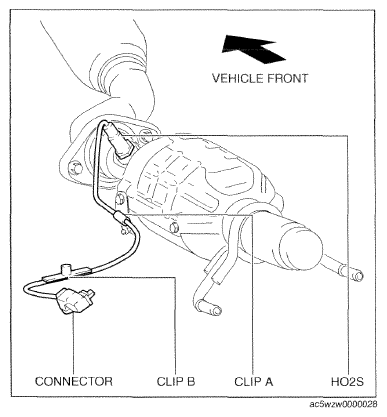

   Fig 2: Identifying HO2S Connector With Clip

   Courtesy of MAZDA MOTORS CORP.
6. Remove the clip A from the bracket.
7. Remove the clip B.

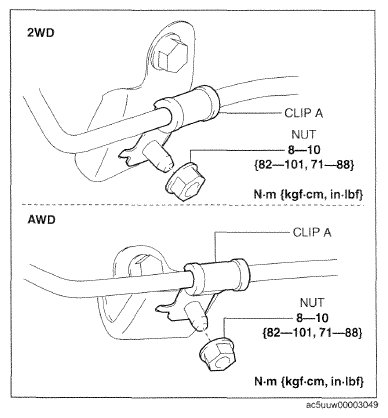

   Fig 3: Clip A And Nut With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
8. Remove the HO2S using the SST  .
9. Install in the reverse order of removal.

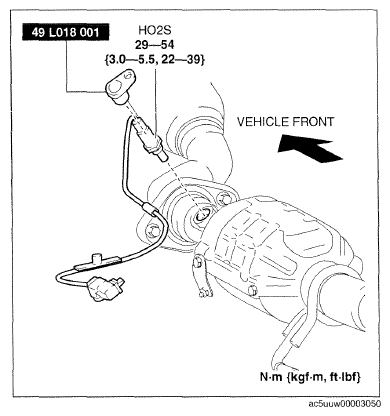

   Fig 4: HO2S With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
