Keyless Control Module

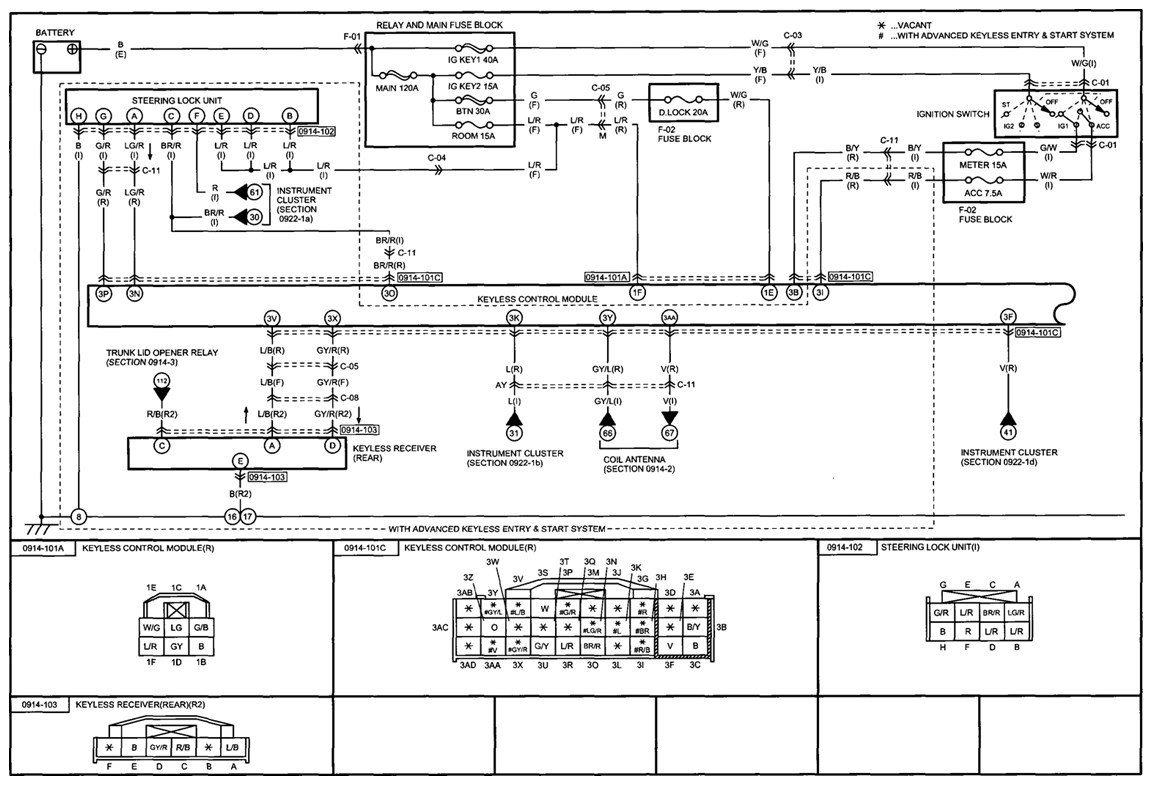

Fig 1: Keyless Control Module - Circuit Diagram (0914-1A)
G09757734Courtesy of MAZDA MOTORS CORP.

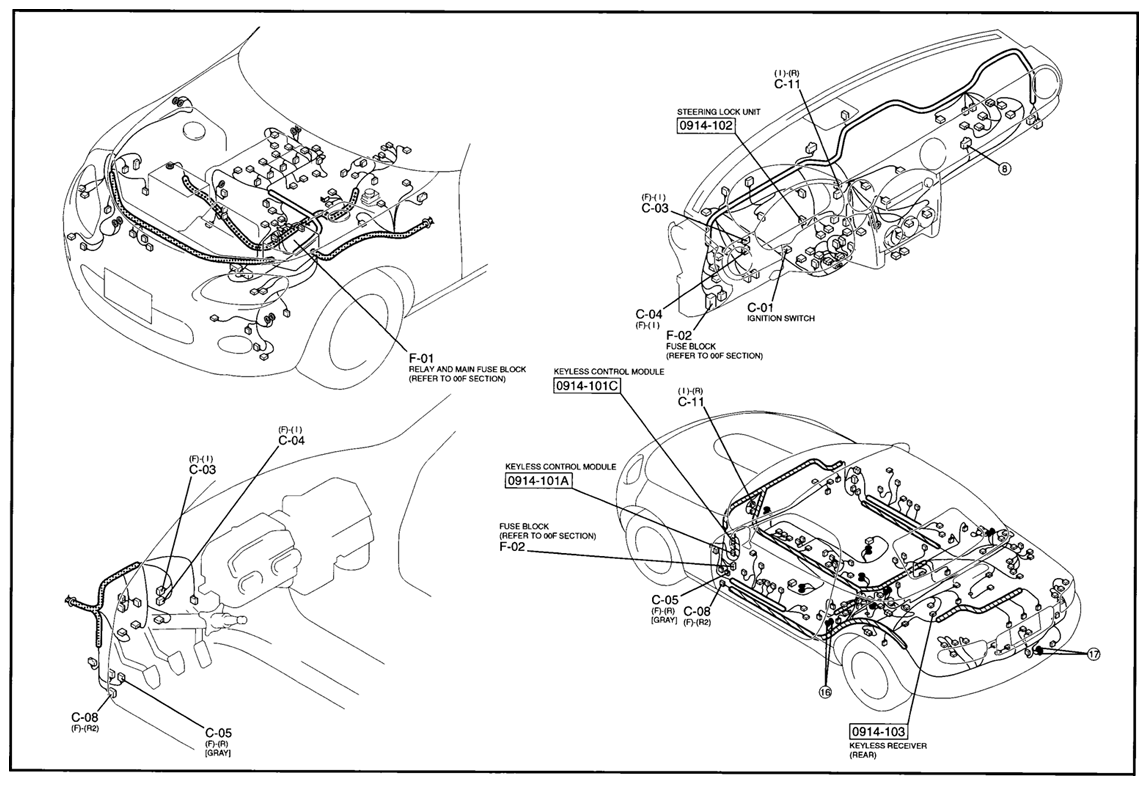

Fig 2: Keyless Control Module Wiring Harness Layout (0914-1A)
G09757735Courtesy of MAZDA MOTORS CORP.

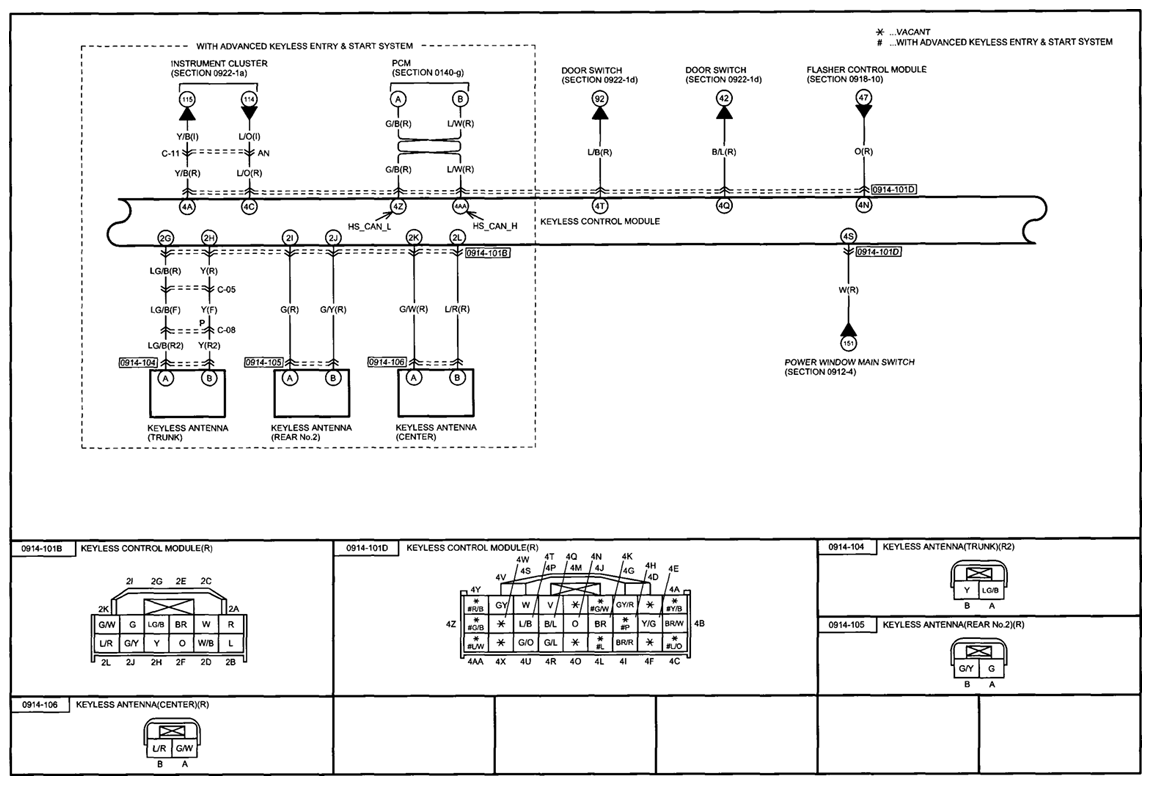

Fig 3: Keyless Control Module - Circuit Diagram (0914-1B)
G09757736Courtesy of MAZDA MOTORS CORP.

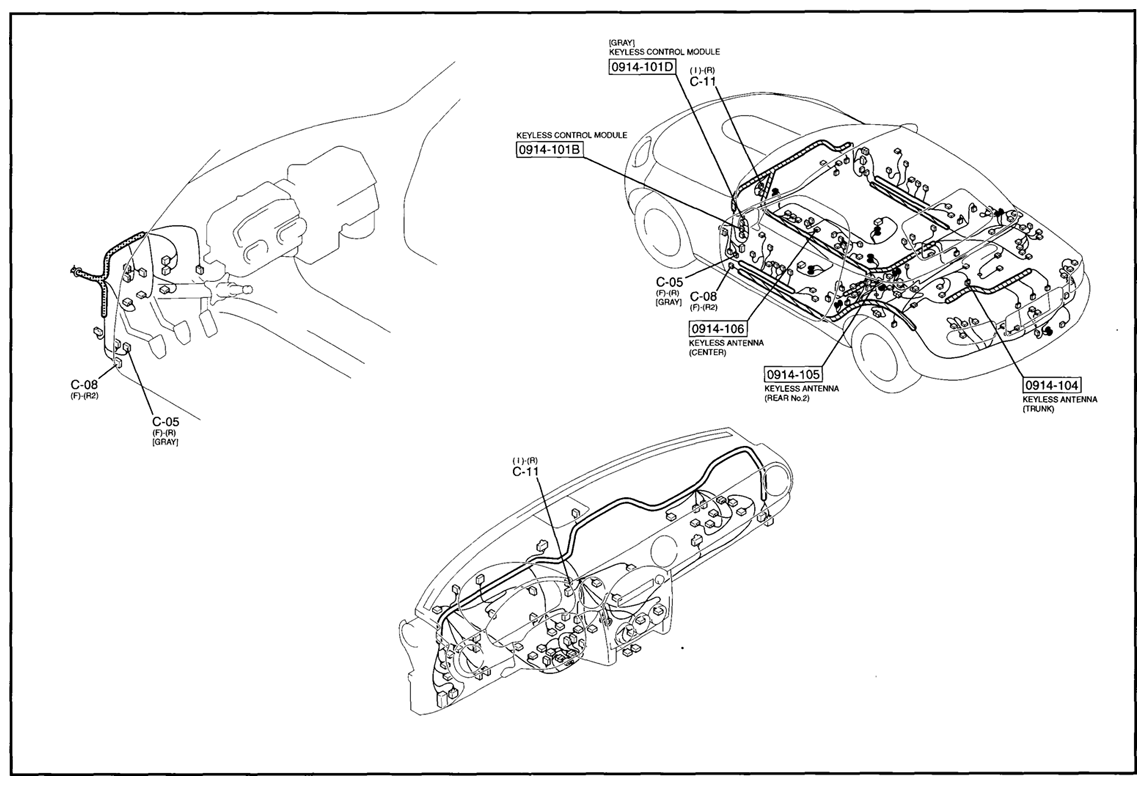

Fig 4: Keyless Control Module Wiring Harness Layout (0914-1B)
G09757737Courtesy of MAZDA MOTORS CORP.

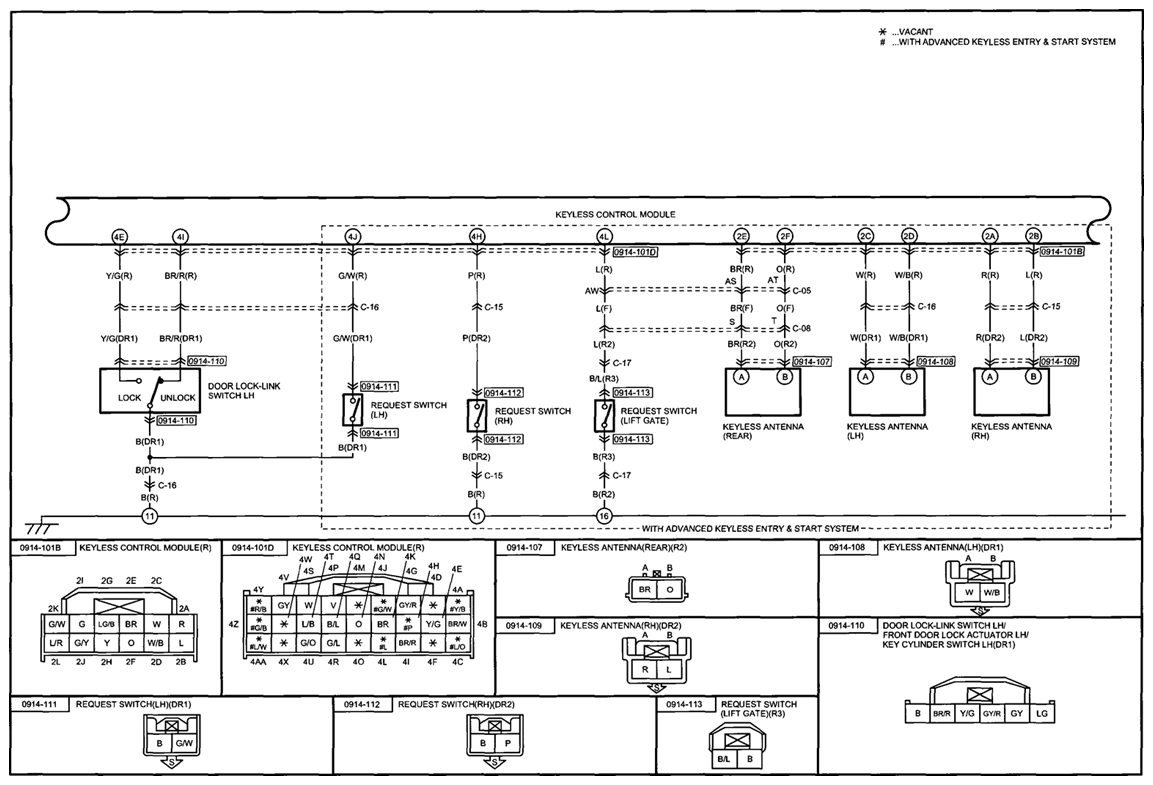

Fig 5: Keyless Control Module - Circuit Diagram (0914-1C)
G09757738Courtesy of MAZDA MOTORS CORP.

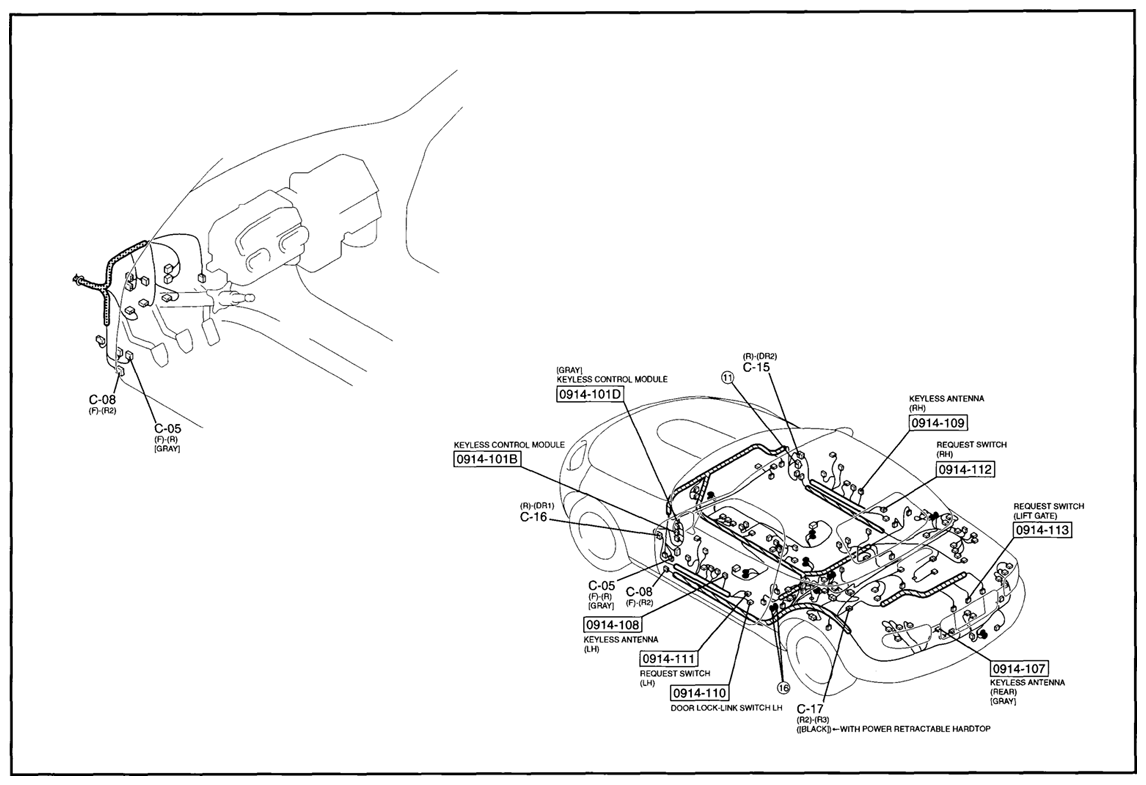

Fig 6: Keyless Control Module Wiring Harness Layout (0914-1C)
G09757739Courtesy of MAZDA MOTORS CORP.

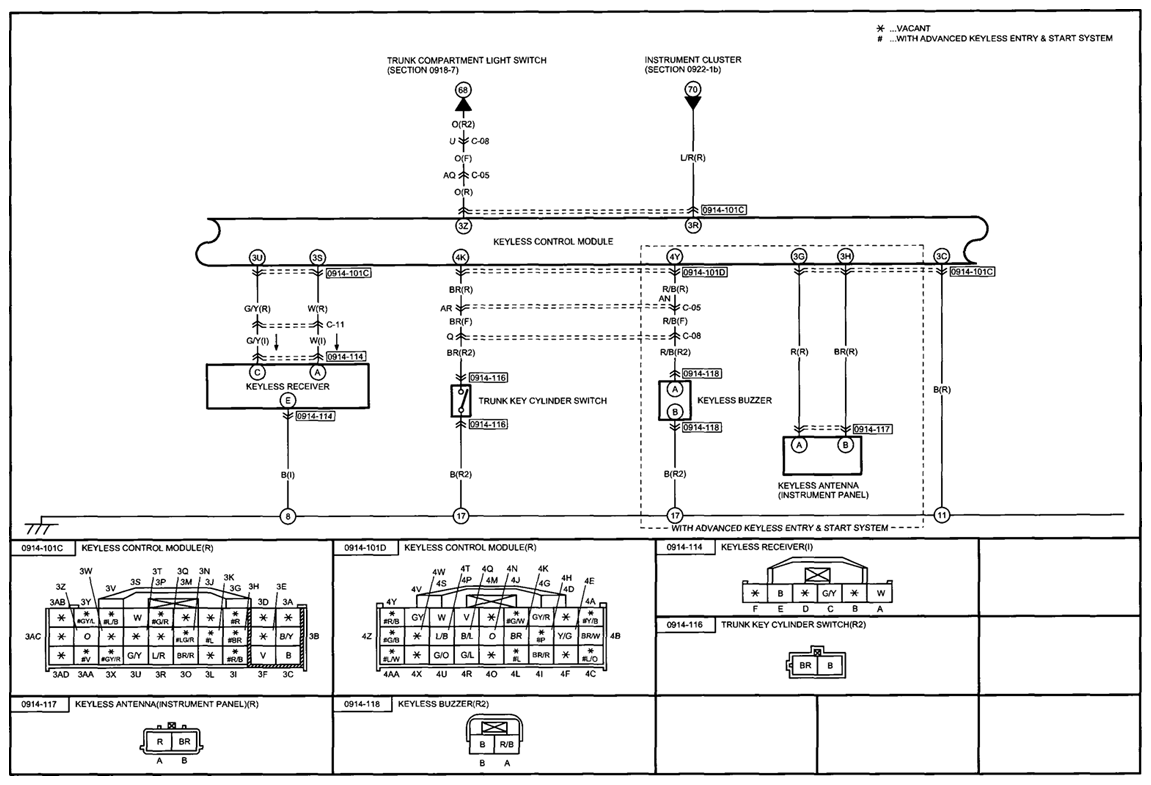

Fig 7: Keyless Control Module - Circuit Diagram (0914-1D)
G09757740Courtesy of MAZDA MOTORS CORP.

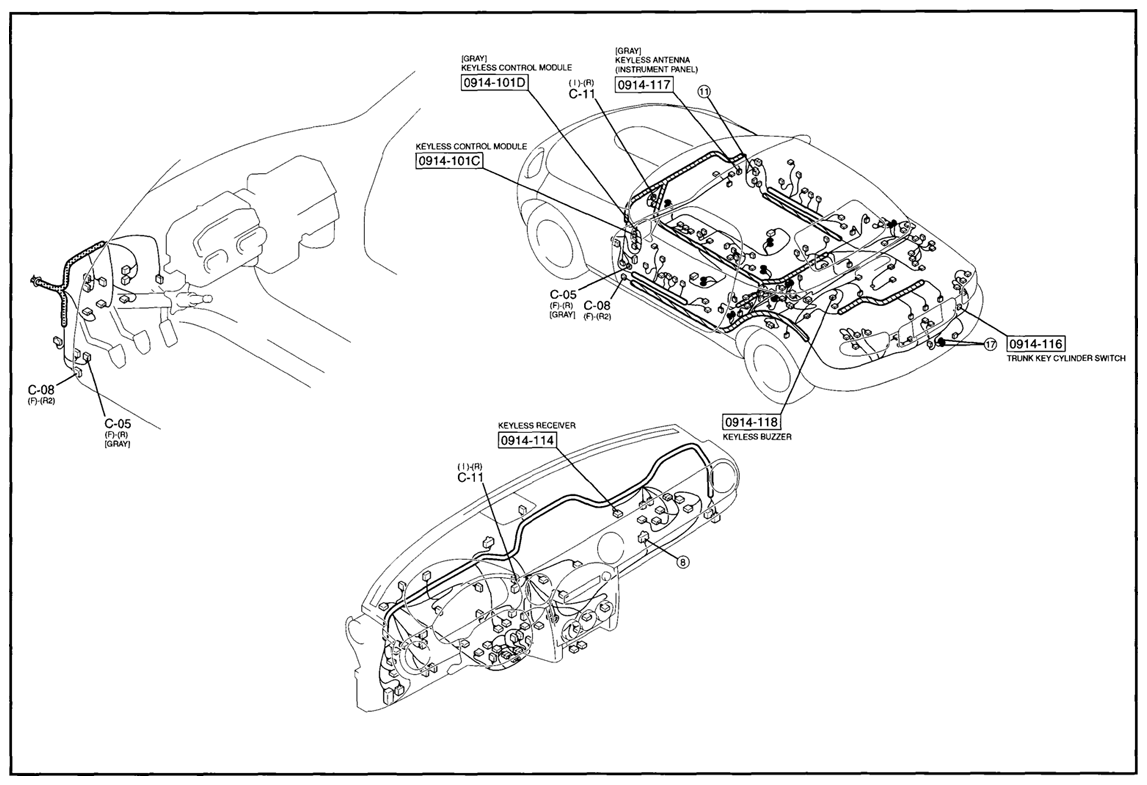

Fig 8: Keyless Control Module Wiring Harness Layout (0914-1D)
G09757741Courtesy of MAZDA MOTORS CORP.

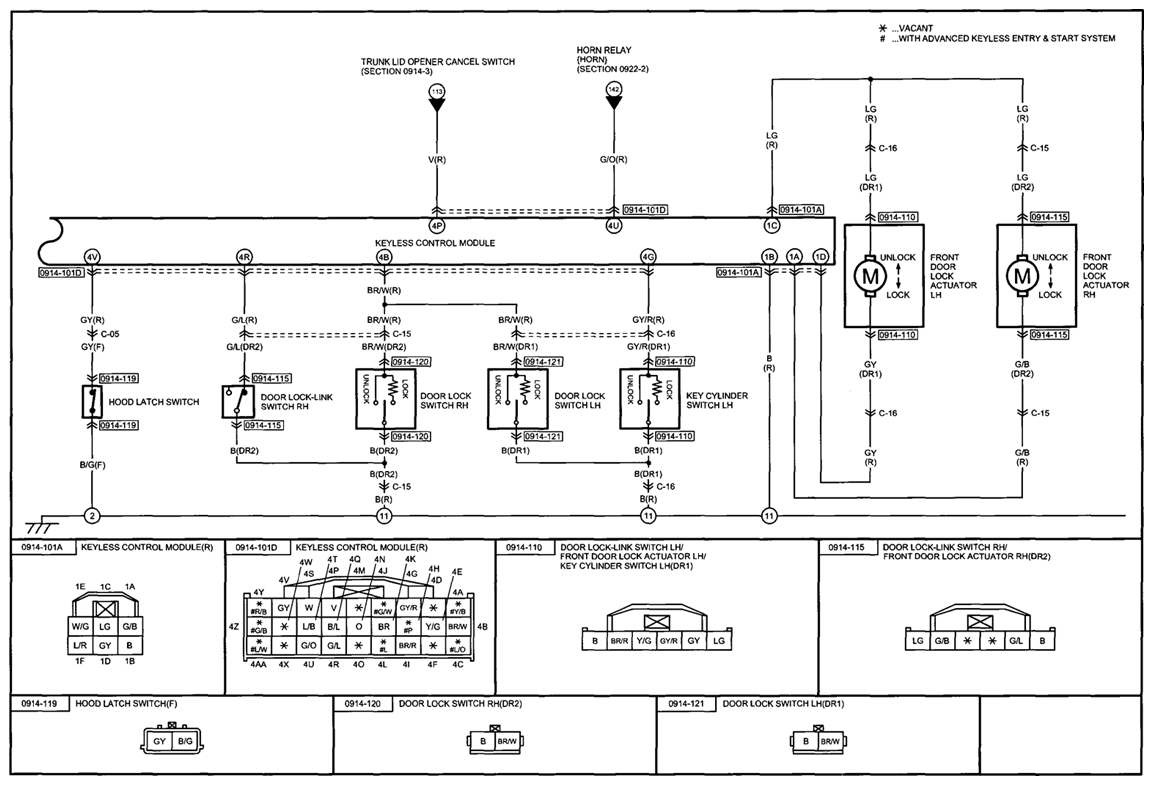

Fig 9: Keyless Control Module - Circuit Diagram (0914-1E)
G09757742Courtesy of MAZDA MOTORS CORP.

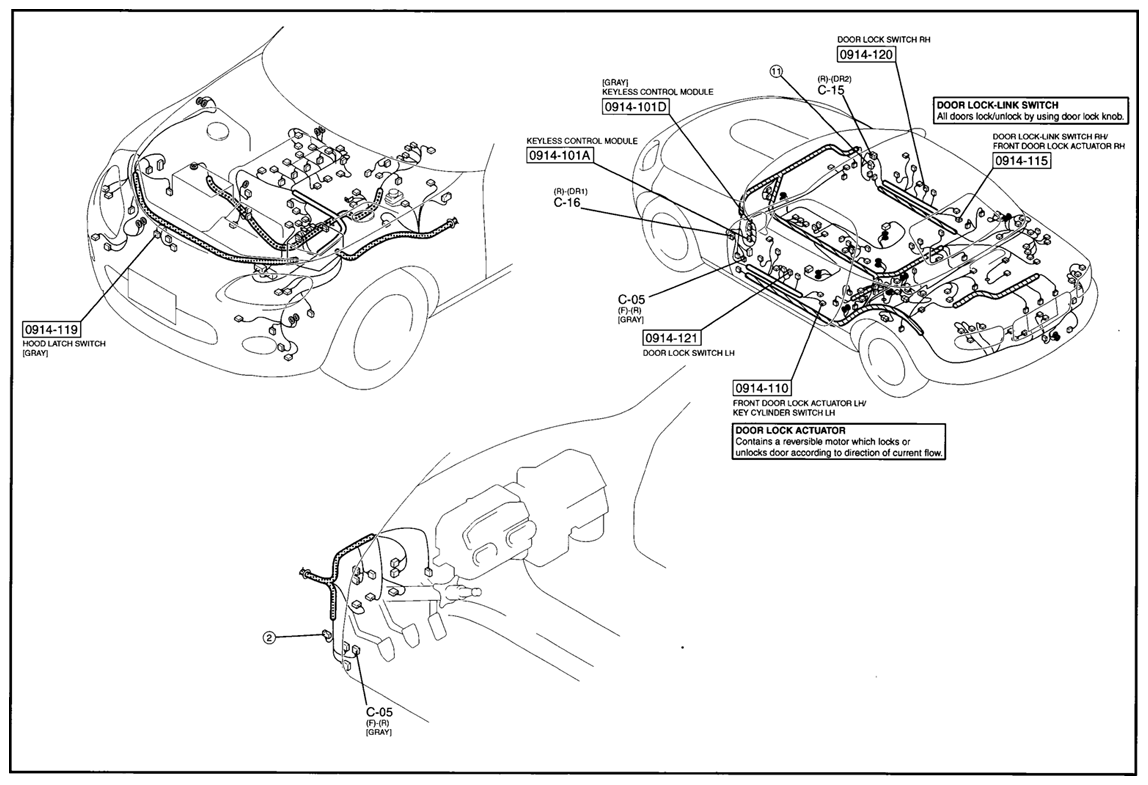

Fig 10: Keyless Control Module Wiring Harness Layout (0914-1E)
G09757743Courtesy of MAZDA MOTORS CORP.
