Continuity Inspection
- Inspect the following items:
- Power steering fluid amount (See POWER STEERING FLUID INSPECTION ).
- Power steering-related inspection (See STEERING LOCATION INDEX ).
- Disconnect the PSP switch connector.
- Start the engine.

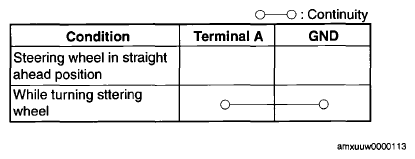

- Verify that the continuity between PSP switch terminal A and body ground is as indicated in the table in figure.
- If not as indicated in the table in figure, replace the CPP switch. (See POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY ).
- If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the "Circuit Open/Short Inspection ".
