Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the cover.

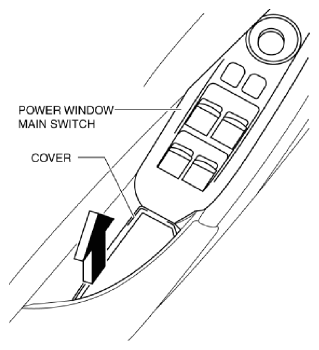

    Fig 1: Removing Power Window Main Switch Cover
    G10962484Courtesy of MAZDA MOTORS CORP.

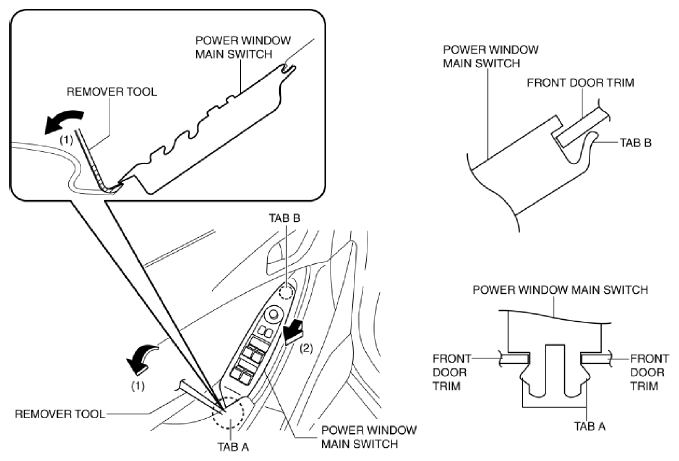

  3. Insert a remover tool shown in the figure and remove the tab A in the direction of arrow (1).
    Fig 2: Removing Power Window Main Switch Tab A
    G10962485Courtesy of MAZDA MOTORS CORP.
  4. Slide the power window main switch in the direction of the arrow (2) shown in the figure and remove the tab B.
  5. Disconnect the power window main switch connector.
  6. Pull the edge of power window main switch cover in the direction of the arrow in the order of (4), (5) while detaching tab C.

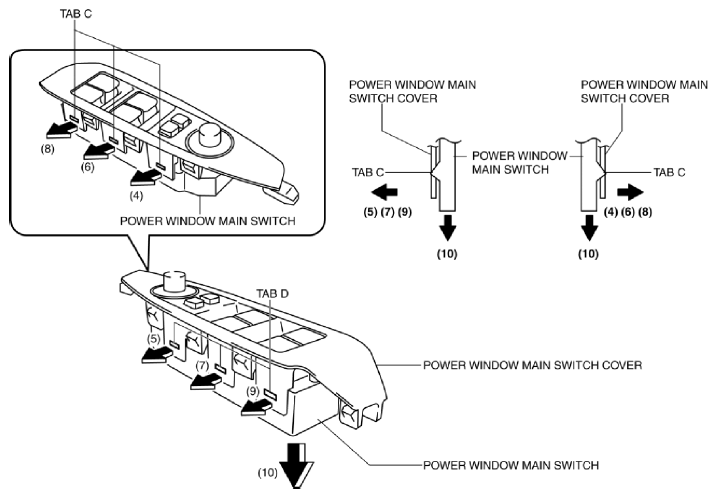

    Fig 3: Removing Power Window Main Switch Cover Tab C
    G10962486Courtesy of MAZDA MOTORS CORP.
  7. Pull the edge of power window main switch cover in the direction of the arrow in the order of (6), (7) while detaching tab C.
  8. Pull the edge of power window main switch cover in the direction of the arrow in the order of (8), (9) while detaching tab C.
  9. Remove the power window main switch in the direction of the arrow (10) shown in the figure.
  10. Install in the reverse order of removal.
