3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Symptom Troubleshooting [Vehicle Control Module]
>>
System Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Wiring Diagram

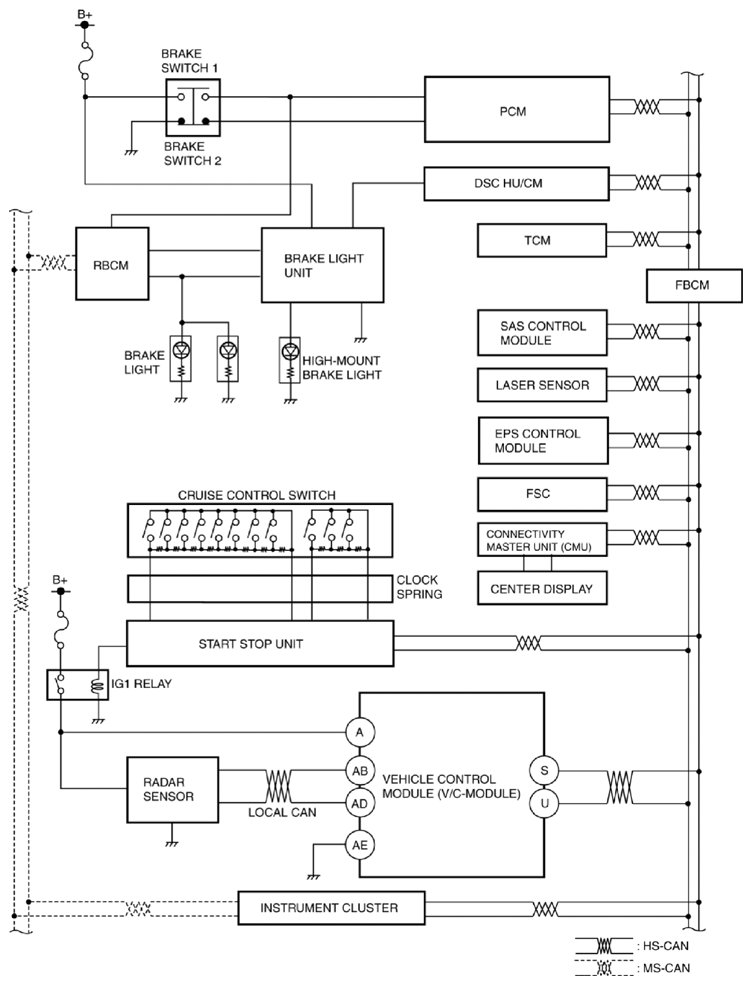

Fig 1: Vehicle Control Module System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
