| DTC P0123:00 |
TP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. 1 voltage at the PCM terminal 1BP is above 4.9 V
, the PCM determines that the TP sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
|
| POSSIBLE CAUSE |
- Throttle body connector or terminals malfunction
- PCM connector or terminals malfunction
- TP sensor No. 1 malfunction

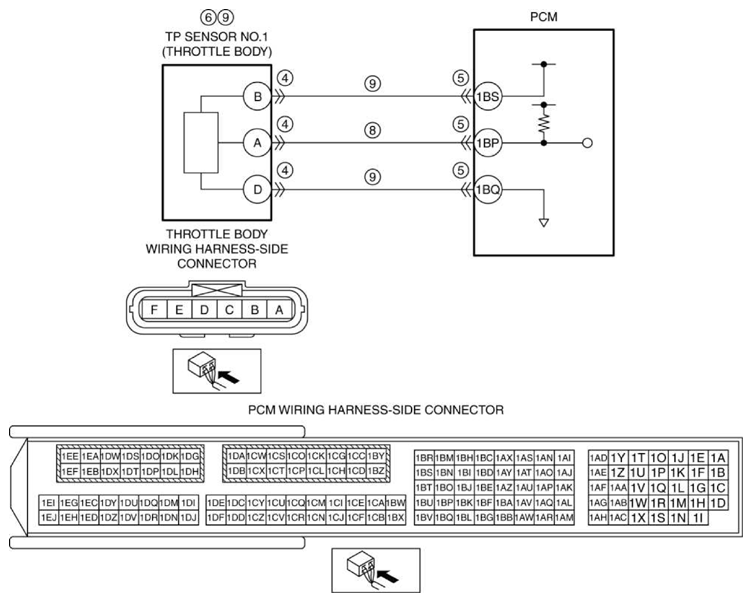

- Short to power supply in wiring harness between throttle body terminal A and PCM terminal 1BP
- Open circuit in wiring harness between the following terminals:
- Throttle body terminal B-PCM terminal 1BS
- Throttle body terminal A-PCM terminal 1BP
- Throttle body terminal D-PCM terminal 1BQ
- PCM malfunction
|
|
|
