| DTC P2530:00 |
Ignition switch stuck off |
| DETECTION CONDITION |
- If the IG ON time count of the instrument cluster proceeds 5 s
under the following condition:
- Ignition switch signal off
Diagnostic support note
- The check engine light does not illuminate.
- The automatic transaxle warning light does not illuminate.
- PENDING CODE is available.
- FREEZE FRAME DATA is not available.
- DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Start stop unit malfunction
- Ignition switch signal output stuck off
- Wiring harness malfunction
- Short or open signal in ignition switch

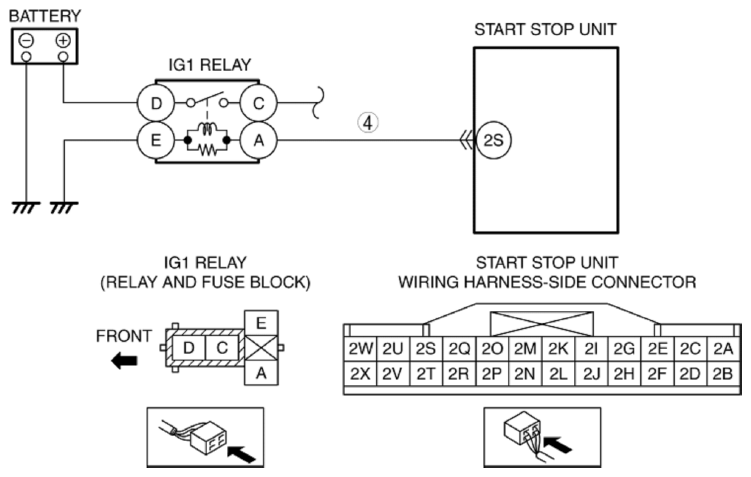

- Ignition switch signal terminal (start stop unit terminal 2S) malfunction
- Control valve body malfunction
- Ignition switch signal terminal (start stop unit terminal 2S) pin deformity
|
|
|
