Troubleshooting Procedure

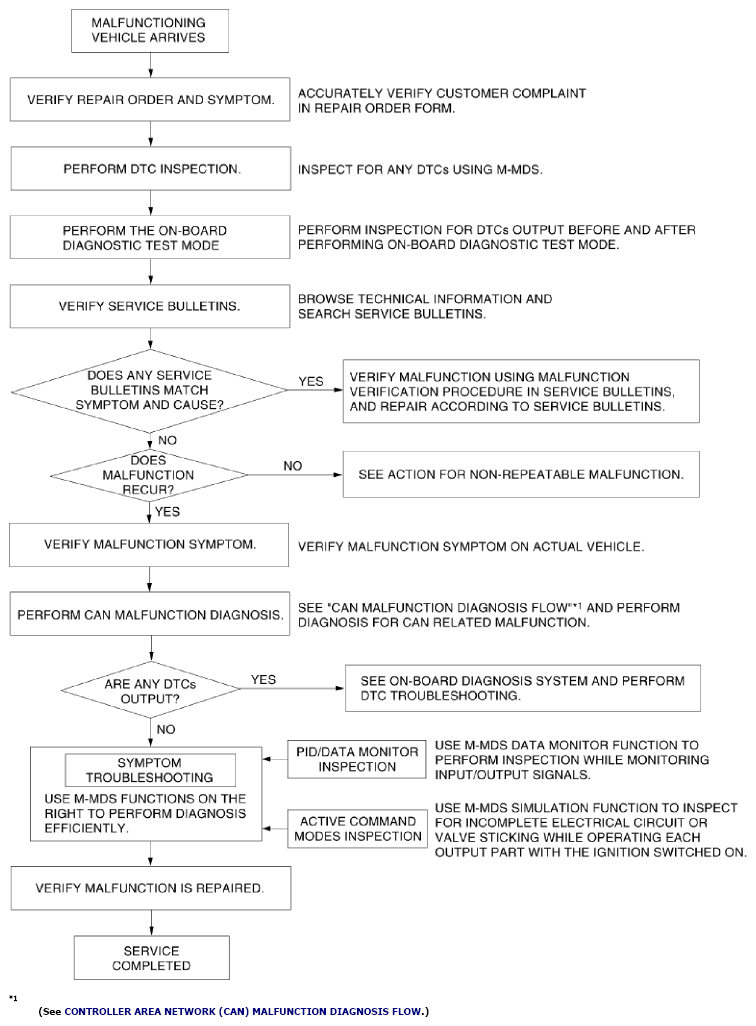

Fig 1: FW 6A-EL Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
