Generated pulse (reference)
>>
Pattern 2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

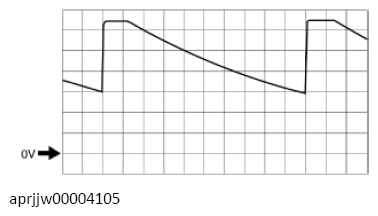

Pattern 2
Courtesy of MAZDA MOTORS CORP.
Terminal:
Front door switch (driver-side) signal: 6G (+) โ body ground (-)
Front door switch (passenger-side) signal: 6H (+) โ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
