Keyless Entry Remote Transmitter Disassembly/Assembly

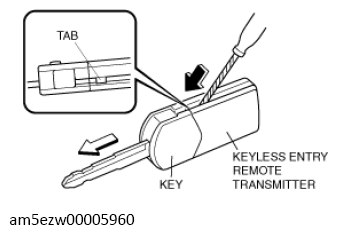

Insert a flathead screwdriver into the notch of the keyless entry remote transmitter, and press the tab to remove the key from the keyless entry remote transmitter.

Courtesy of MAZDA MOTORS CORP.
Insert a flathead screwdriver into the notch of the keyless entry remote transmitter and open it.

Courtesy of MAZDA MOTORS CORP.

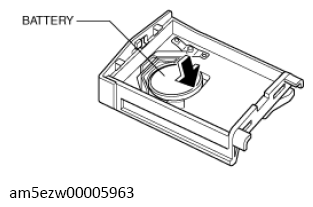

Remove the battery by pressing it in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install the new battery (CR1620) with the plus pole facing down.

Courtesy of MAZDA MOTORS CORP.
Align the keyless entry remote transmitter cover and close.
Battery type

Lithium battery CR1620

Battery life

Approx. 2 years (when used approx. 10 times/day)
Install the key to the keyless entry remote transmitter.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the key is not completely installed to the keyless entry remote transmitter, they may come apart. When connecting the key to the keyless entry remote transmitter, grip the key and the keyless entry remote transmitter until a click sound is heard.
