Connector Installation Note

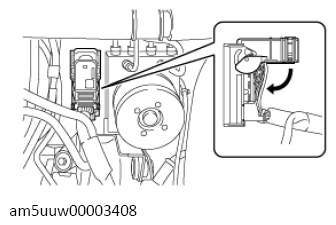

  1. After connecting the connector, verify that the connector cover is completely pushed in.
G13727246Courtesy of MAZDA MOTORS CORP.
