Exhaust Manifold Bracket Installation Note

Temporarily tighten the bolt (3) shown in the figure, insert the exhaust manifold bracket from the side, and temporarily install the exhaust manifold bracket.

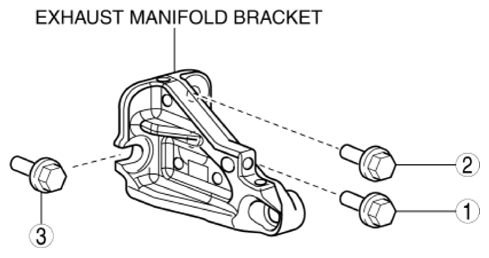

Fig 1: Exhaust Manifold Bracket Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the bolt (1) shown in the figure.
Temporarily tighten the bolt (2) shown in the figure.
Tighten the bolt in the order shown in the figure.
Tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
