Air Cleaner Case Installation Note

  1. Install the air cleaner case as shown in the figure.

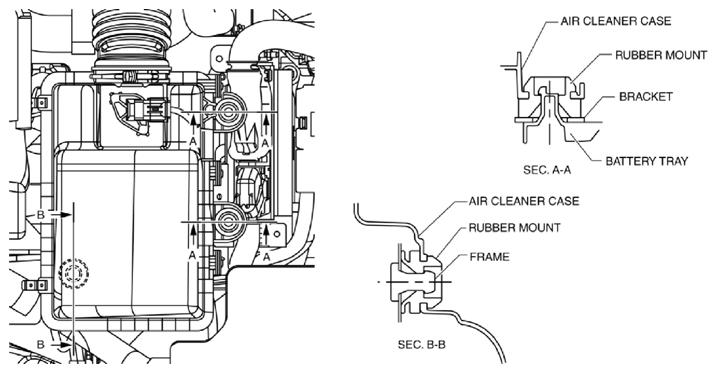

Fig 1: Installing Air Cleaner Case
G10985360Courtesy of MAZDA MOTORS CORP.
