Air Hose Installation Note

  1. Install the air hose as shown in the figure.

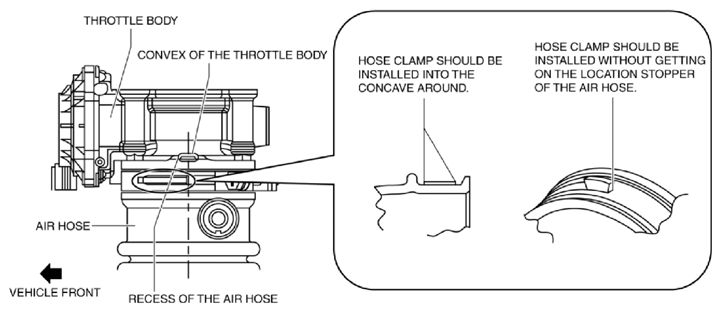

Fig 1: Installing Air Hose (Throttle Body Side)
G10985362Courtesy of MAZDA MOTORS CORP.

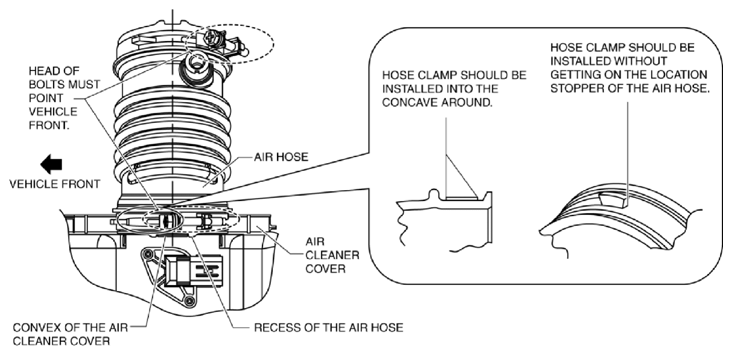

Fig 2: Installing Air Hose (Air Cleaner Side)
G10985363Courtesy of MAZDA MOTORS CORP.
