Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

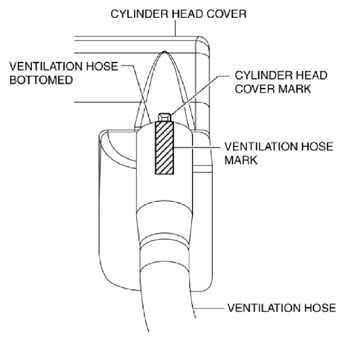

Fig 1: Installing Ventilation Hose (Cylinder Head Cover Side)
G10985364Courtesy of MAZDA MOTORS CORP.

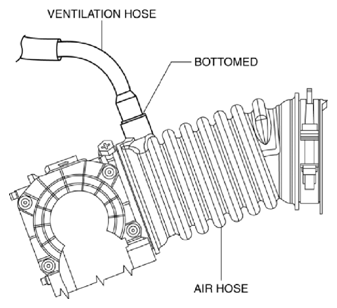

Fig 2: Installing Ventilation Hose (Air Hose Side)
G10985365Courtesy of MAZDA MOTORS CORP.
