Power Window Main Switch Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the cover A.
Insert a tape-wrapped flathead screwdriver shown in the figure and remove the tab B in the direction of arrow (1).

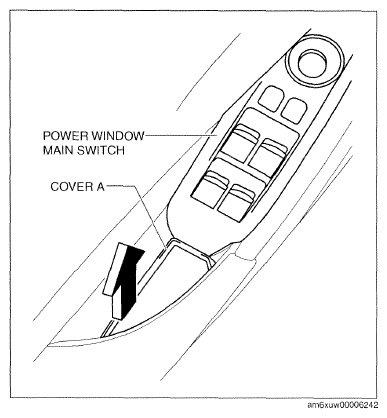

Fig 1: Removing Power Window Main Switch Cover
Courtesy of MAZDA MOTORS CORP.

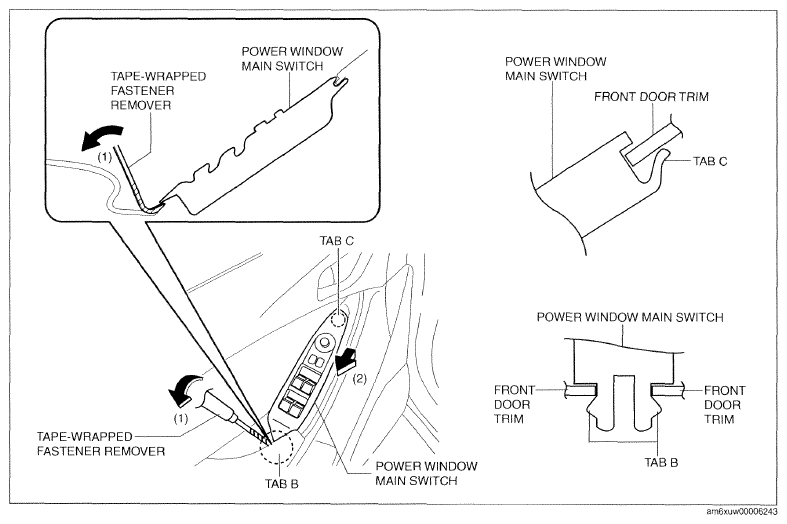

Fig 2: Sliding Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
Slide the power window main switch in the direction of the arrow (2) shown in the figure and remove the tab C.
Disconnect the power window main switch connector.
Pull the edge of power window main switch cover in the direction of arrow (3) and detach tabs D.

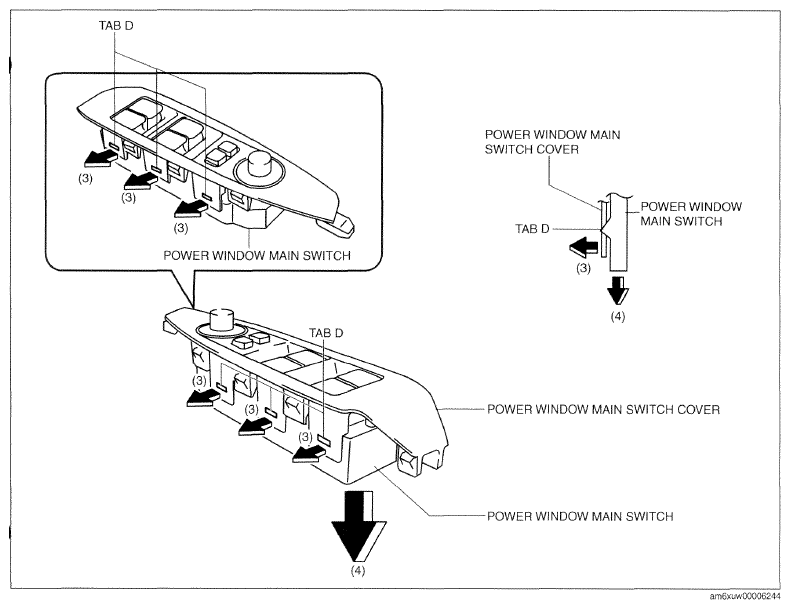

Fig 3: Pulling Edge Of Power Window Main Switch Cover
Courtesy of MAZDA MOTORS CORP.
Remove the power window main switch in the direction of arrow (4) shown in the figure.
Install in the reverse order of removal.
