Auto Leveling Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the auto leveling sensor.

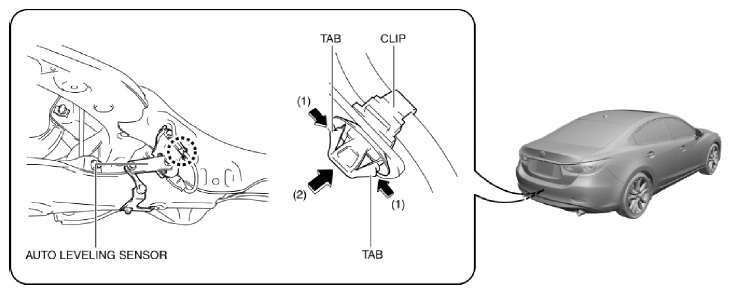

Fig 1: Detaching Clip Tabs From Auto Leveling Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the clip.
Disconnect the connector.

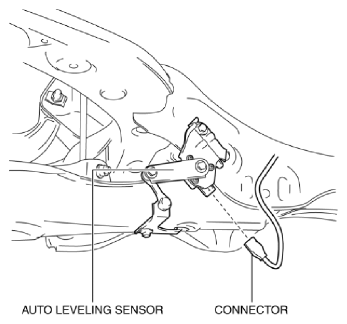

Fig 2: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

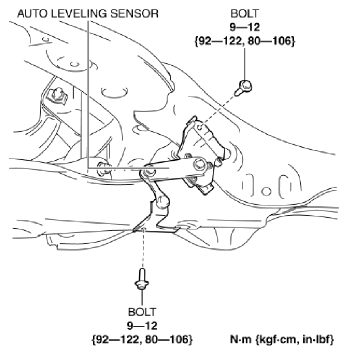

Fig 3: Removing Bolts
Courtesy of MAZDA MOTORS CORP.
Pull out the hooks from the rear crossmember in the positions shown in the figure.

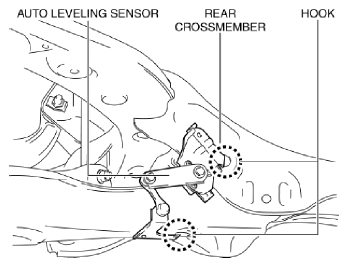

Fig 4: Pulling Out Hooks From Rear Crossmember
Courtesy of MAZDA MOTORS CORP.
Remove the auto leveling sensor.
Install in the reverse order of removal.
Perform the headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
