Cover Installation Note

  1. Install the cover to the housing so that there is no clearance between the housing and the cover.
    CAUTION:
    • If there is a gap between the housing and the cover, water may penetrate from the gap causing a malfunction in the front combination light. Verify that there is no gap between the cover and the housing.

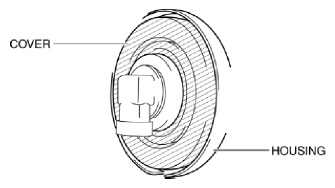

    Fig 1: Identifying Housing And Cover
    G10987925Courtesy of MAZDA MOTORS CORP.
