Front Combination Light Removal/Installation

NOTE:

Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the intake air guide. (See INTAKE AIR GUIDE REMOVAL/INSTALLATION .)

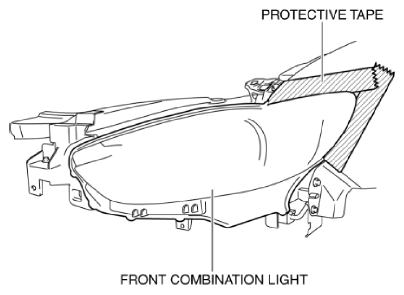

To prevent scratches or damage, affix protective tape to the position shown in the figure.
CAUTION:
- When the front combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body could interfere with the front combination light and cause scratching or damage to the body.
Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

Fig 2: Disconnecting Front Combination Light Connector
Courtesy of MAZDA MOTORS CORP.

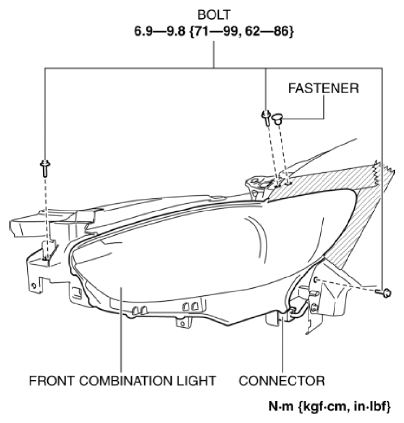

Remove the fastener.
Remove the bolts.

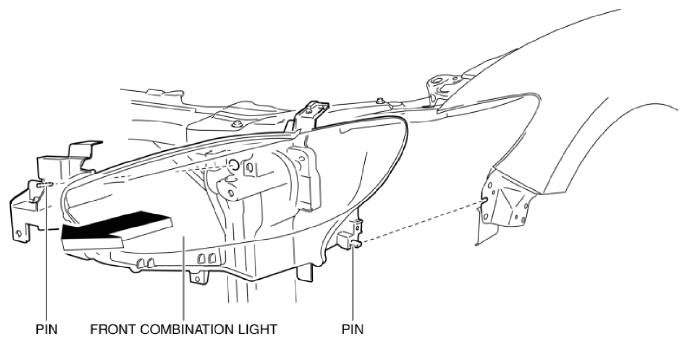

Pull the front combination light in the direction of the arrow shown in the figure and pull out the front combination light pins from the body.

Fig 3: Pulling Front Combination Light
Courtesy of MAZDA MOTORS CORP.
Remove the front combination light.
Install in the reverse order of removal.
CAUTION:
- When replacing the front combination light, refer to the FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY and verify that all of the parts have been assembled. If a part has not been assembled correctly, it could cause water leakage or a malfunction such as fogging in the housing. (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .)
Adjust the headlight aiming. (See HEADLIGHT AIMING .)
