Light Switch

  1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity between the light switch terminals is as indicated in the table.

    With auto light system

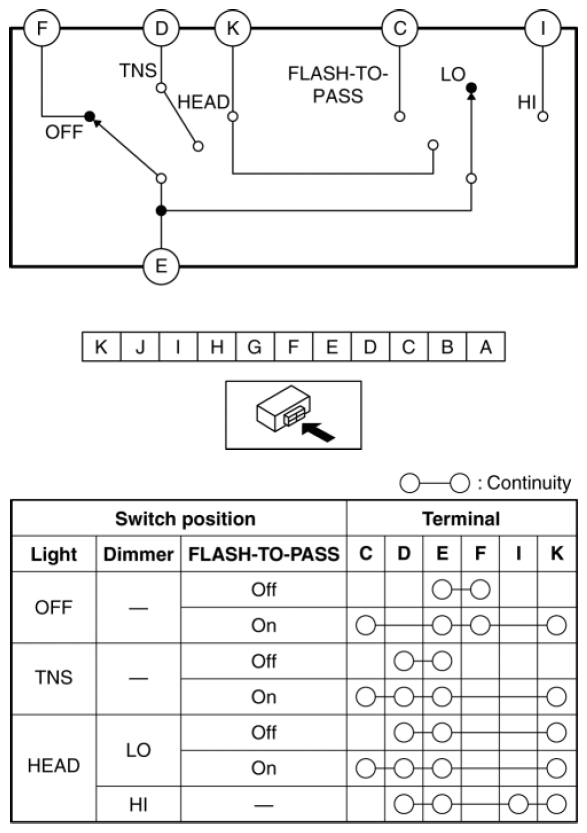

    Fig 1: Light Switch Connector Terminals Continuity Chart (Without Auto Light System)
    G10988015Courtesy of MAZDA MOTORS CORP.
