Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

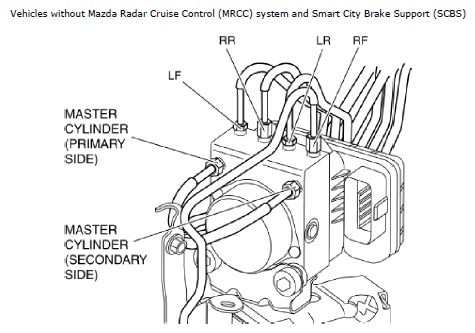

Fig 1: Identifying DSC HU/CM And Brake Pipe Joints (Vehicles Without MRCC System)
Courtesy of MAZDA MOTORS CORP.

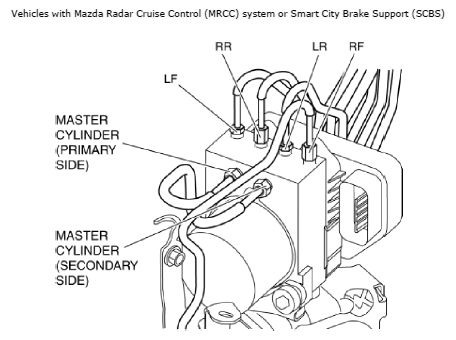

Fig 2: Identifying DSC HU/CM And Brake Pipe Joints (Vehicles With MRCC System)
Courtesy of MAZDA MOTORS CORP.
Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
