Connector Installation Note

  1. Connect the connector in the order shown in the figure.

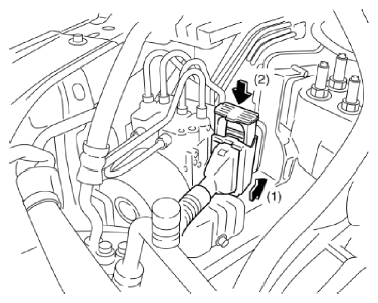

    Fig 1: Connecting Brake Pipe Connector
    G10986026Courtesy of MAZDA MOTORS CORP.
  2. After connecting the connector, verify that the connector is completely locked.
