Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat side back (RH) (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

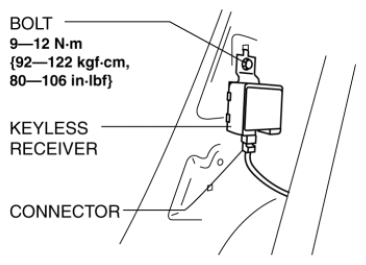

    Fig 1: Identifying Keyless Receiver Bolt With Torque Specifications
    G10987872Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
