Short Cord Removal Note

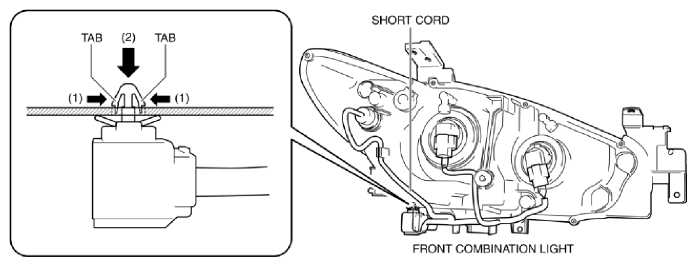

  1. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the clip in the direction of the arrow (2) shown in the figure to detach the clip tabs and front combination light.
    Fig 1: Pressing Clip Tabs
    G10987924Courtesy of MAZDA MOTORS CORP.
  2. Remove the short cord.
