Side Turn Light Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
  3. Remove the outer mirror garnish (upper side). (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
  4. Remove the screws.

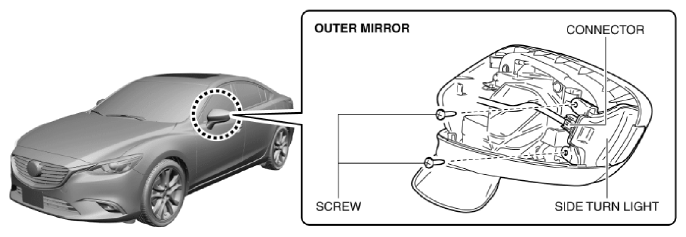

    Fig 1: Removing Side Turn Light Screws
    G10987955Courtesy of MAZDA MOTORS CORP.
  5. Remove the side turn light.
  6. Disconnect the connector.
  7. Install in the reverse order of removal.
