| DETECTION CONDITION |
- U3003:16
- The vehicle speed exceeds 3 km/h {2 mph}
and the voltage at DSC HU/CM terminal AG is less than 10 V
.
- U3003:17
- The voltage at DSC HU/CM terminal AG is 16 V or more
.
- U3003:1C
- Low ignition voltage (10 V or less
) is detected at the voltage monitor of the solenoid valve or motor monitor.
- The ABS wheel speed sensor power supply for all four wheels decreases for a continuous 60 s
with the voltage at DSC HU/CM terminal AF is 10 V or less
.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Malfunction of fuse (ABS/DSC M 50A or ABS/DSC S 30A)

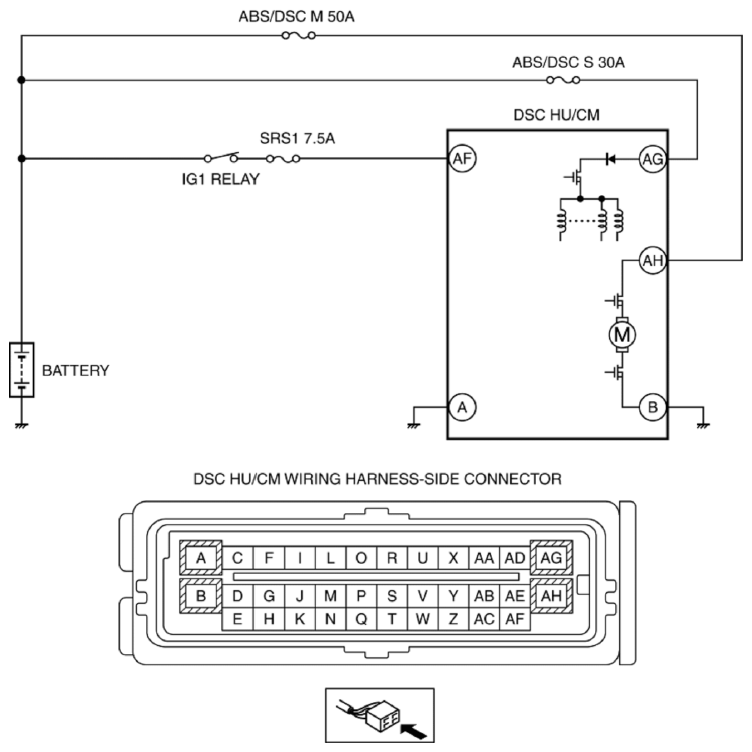

- Open or short circuit in wiring harness between DSC HU/CM terminal AG and battery
- Open circuit in wiring harness between DSC HU/CM terminal A and body ground
- Battery deterioration
- Generator malfunction
- Poor connection at connectors (female terminal)
|
|
|
