Relay And Fuse Block Middle Cover Disassembly/Assembly

Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

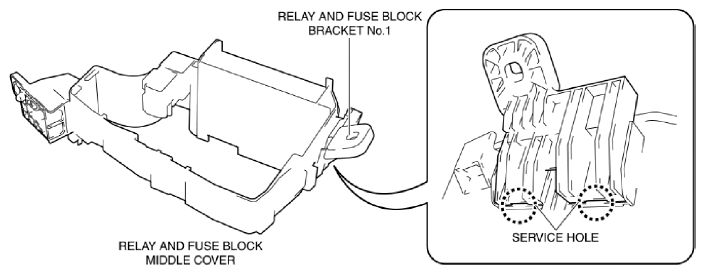

Fig 1: Identifying Relay And Fuse Block Middle Cover, Bracket No. 1 And Service Holes
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of arrow (1) shown in the figure, and pull out the relay and fuse block bracket No. 1 in the direction of arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 1.

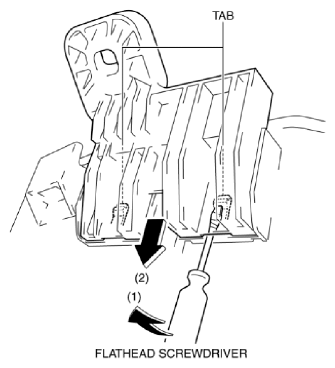

Fig 2: Pulling Out Relay And Fuse Block Bracket No. 1 Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Detach all the relay and fuse block middle cover tabs from the relay and fuse block bracket No. 1 and remove the relay and fuse block bracket No. 1 from the relay and fuse block middle cover.
Insert a flathead screwdriver into the service hole in the position shown in the figure.

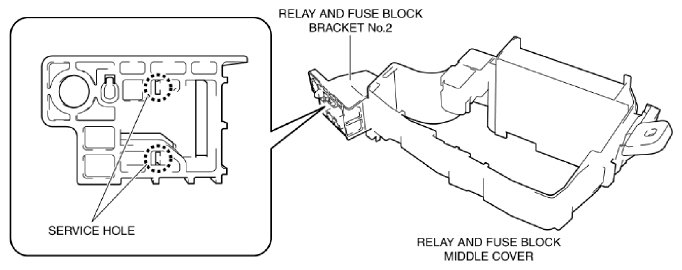

Fig 3: Identifying Relay And Fuse Block Bracket No. 2, Middle Cover And Service Holes
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of arrow (1) shown in the figure, and pull out the relay and fuse block bracket No. 2 in the direction of arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 2.

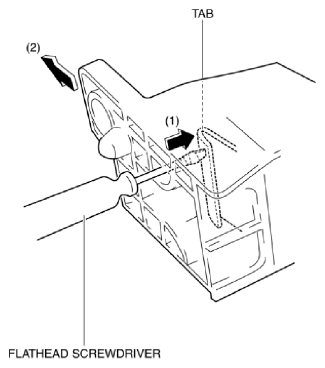

Fig 4: Pulling Out Relay And Fuse Block Bracket No. 2 Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the relay and fuse block bracket No. 2.
Assemble in the reverse order of disassembly.
