Oil Pump Installation Note

1. Temporarily tighten the three bolts  shown in the figure.

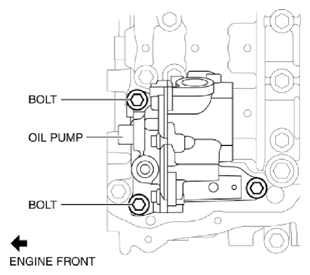

   Fig 1: Identifying Oil Pump And Bolts

   Courtesy of MAZDA MOTORS CORP.
2. Tighten the two bolts  shown in the figure to the specified torque.

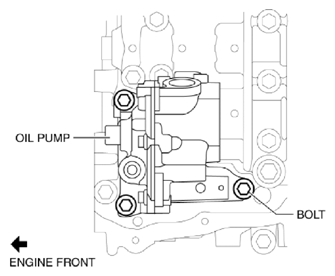

   Fig 2: Identifying Oil Pump Bolts

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The tightening order for the two bolts is optional.

   Tightening torque

   • 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
3. Finally, tighten the bolt shown in the figure to the specified torque.

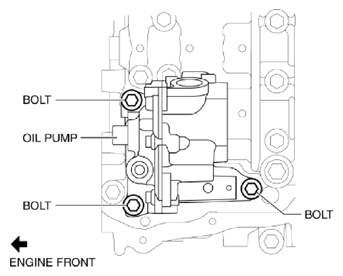

Fig 3: Identifying Oil Pump Bolt

Courtesy of MAZDA MOTORS CORP.

Tightening torque

• 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
