Electric Variable Valve Timing Motor/Driver Installation Note

Install a new O-ring to the O-ring installation groove of the engine front cover.
CAUTION:
- To prevent damage to the electric variable valve timing motor/driver, do not apply excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the shaded areas shown in the figure.
Fig 1: Identifying Engine Front Cover And O-Ring Installation Groove
Courtesy of MAZDA MOTORS CORP.
Install the electric variable valve timing motor/driver using the following procedures.
NOTE:
- The eccentric shaft on the electric variable valve timing actuator side can be rotated to the left and right.

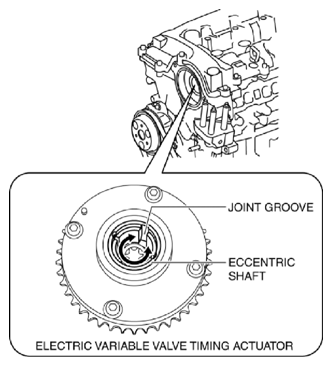

  Fig 2: Identifying Electric Variable Valve Timing Actuator, Eccentric Shaft And Joint Groove
  Courtesy of MAZDA MOTORS CORP.
- The electric variable valve timing motor/driver can be assembled with the joint groove of the eccentric shaft in any position, and it will not lead to vehicle damage or performance reduction.
1. Before installation, rotate the joint on the end of the electric variable valve timing motor so that it is aligned to the joint groove on the electric variable valve timing actuator side.

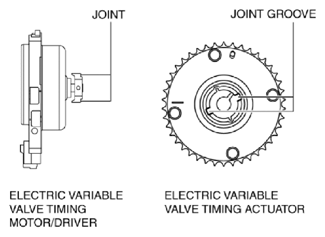

  Fig 3: Identifying Joint On End Of Electric Variable Valve Timing Motor
  Courtesy of MAZDA MOTORS CORP.
2. Engage the joint on the end of the electric variable valve timing motor with the joint groove on the electric variable valve timing actuator side.
3. Attach the seal surface.
4. Tighten the electric variable valve timing motor/driver installation bolts.
  Tightening torque
  - 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
