Engine Control System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

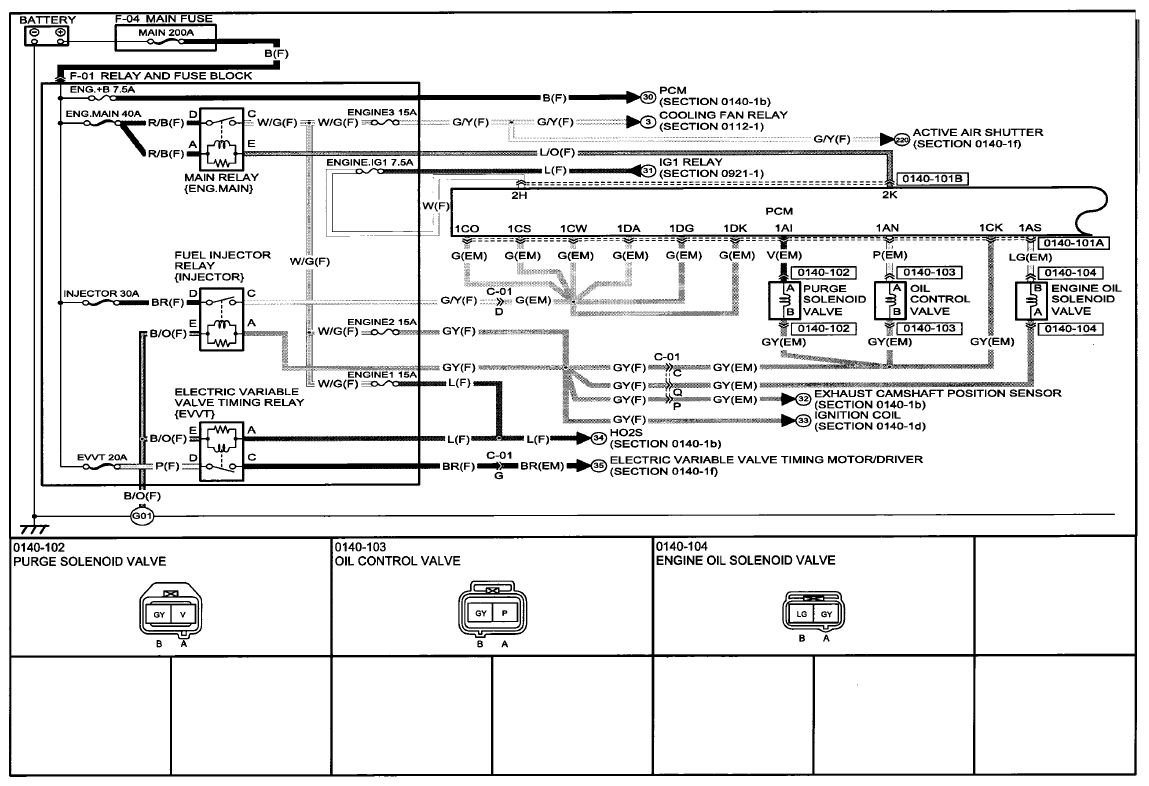

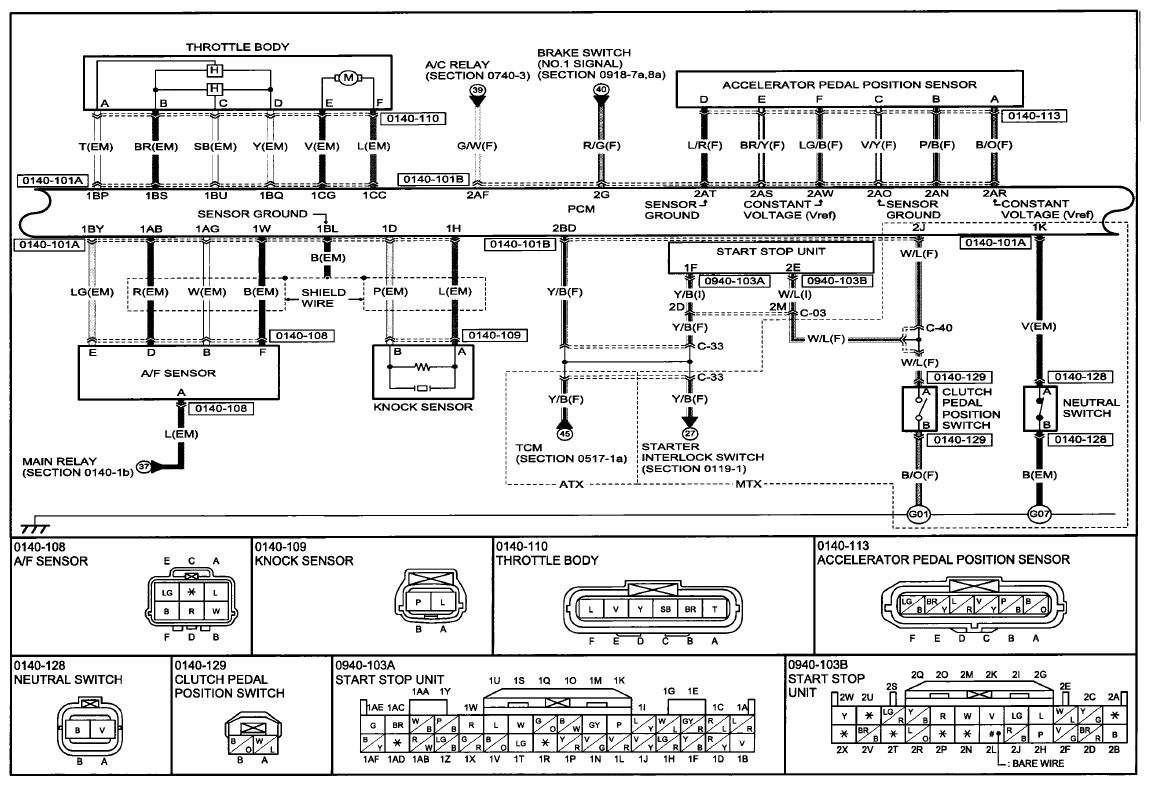

Fig 1: Engine Control System Communication Diagram (0140-1A)

Courtesy of MAZDA MOTORS CORP.

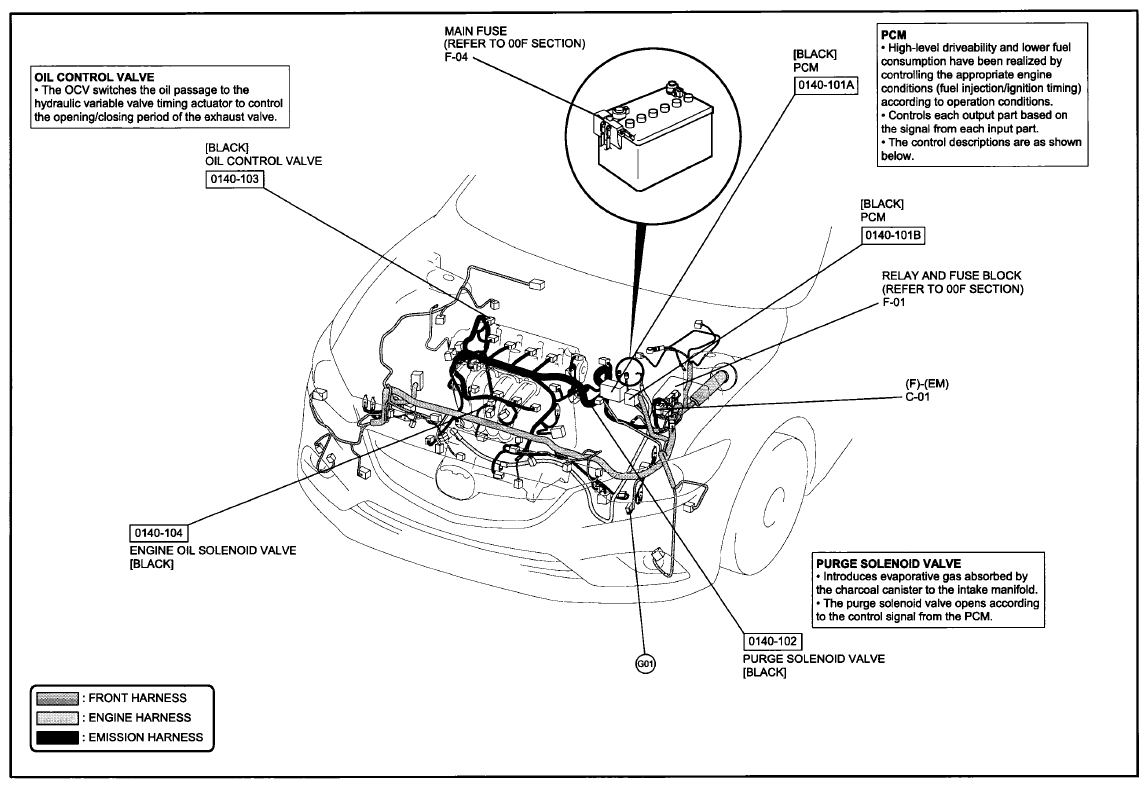

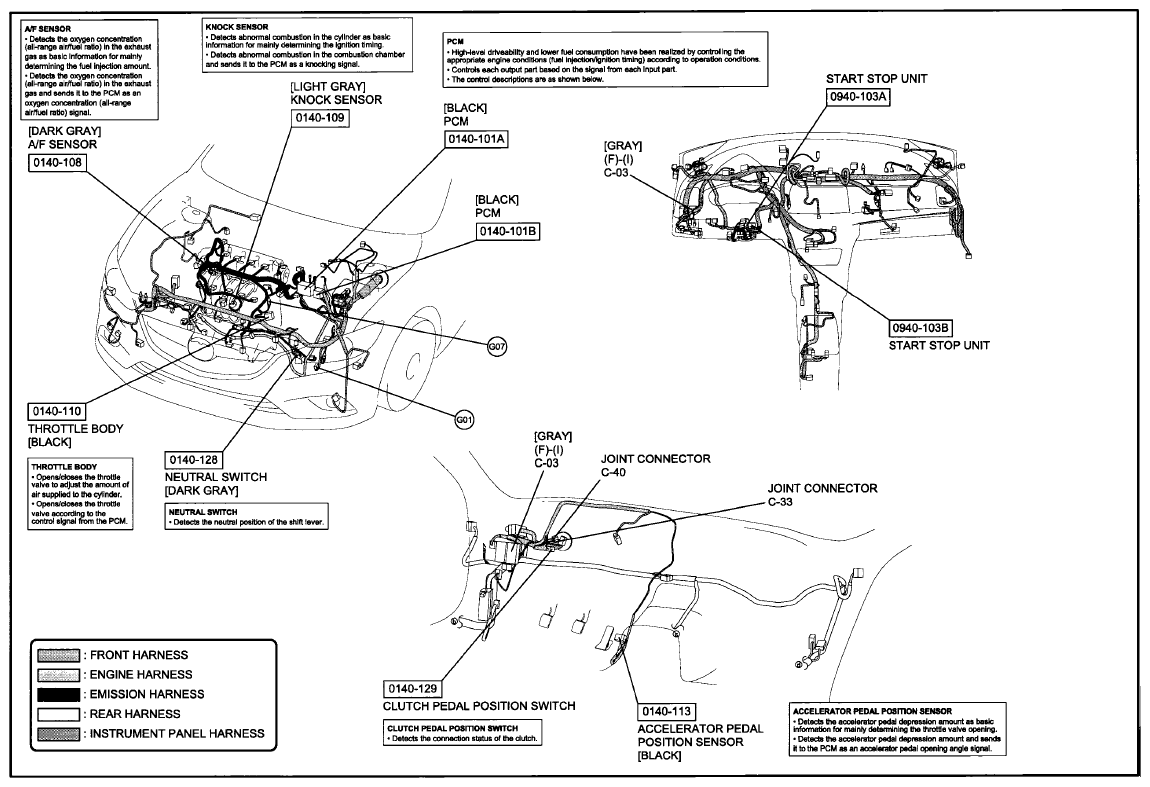

Fig 2: Engine Control System Wiring Harness Connectors (0140-1A)

Courtesy of MAZDA MOTORS CORP.

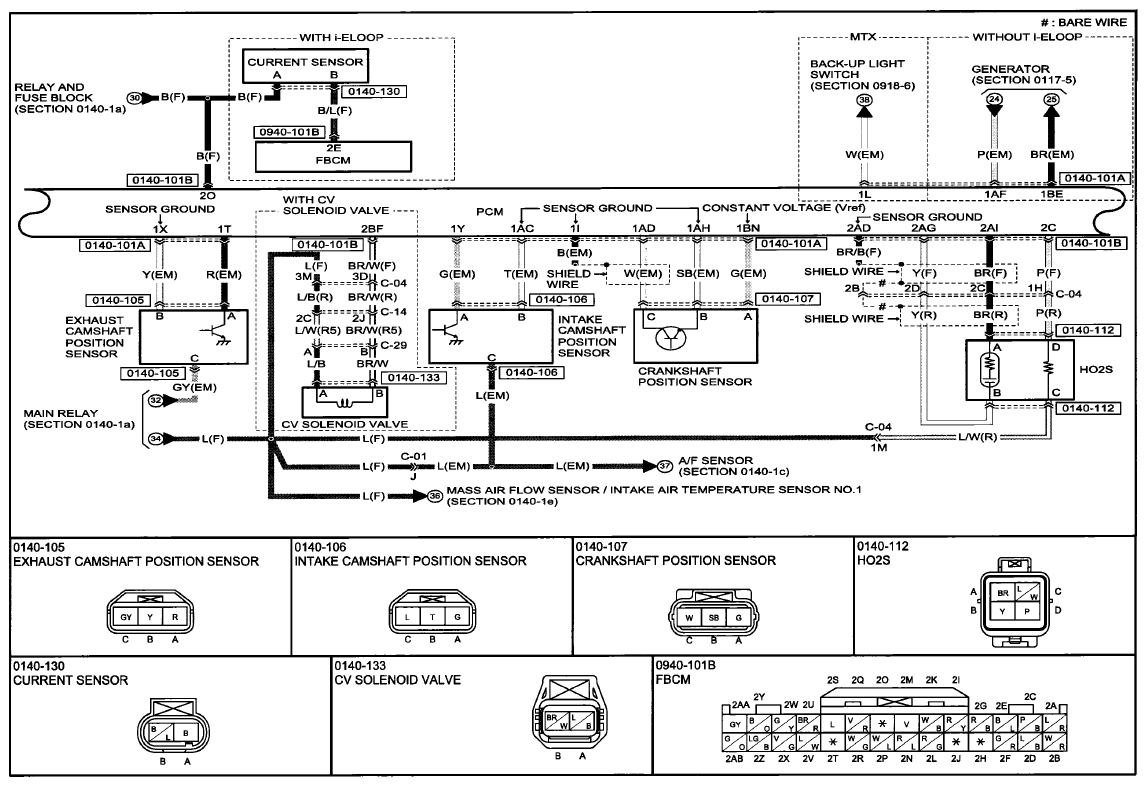

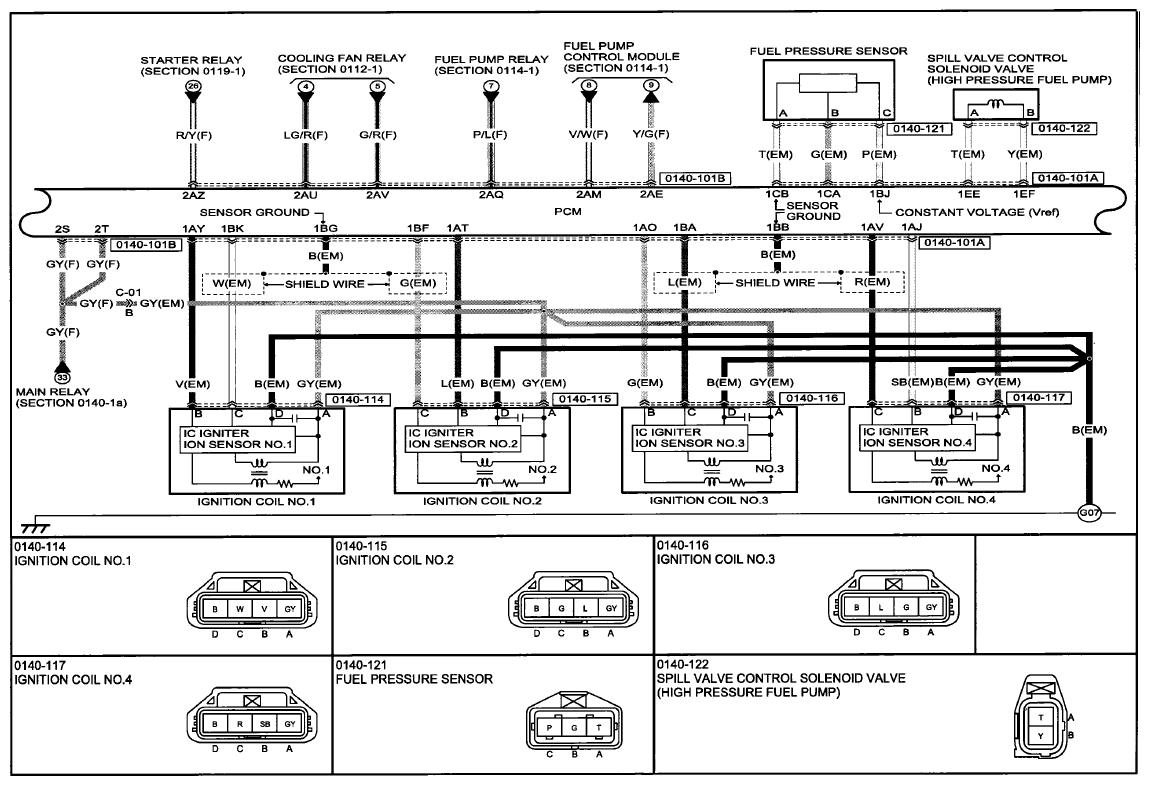

Fig 3: Engine Control System Communication Diagram (0140-1B)

Courtesy of MAZDA MOTORS CORP.

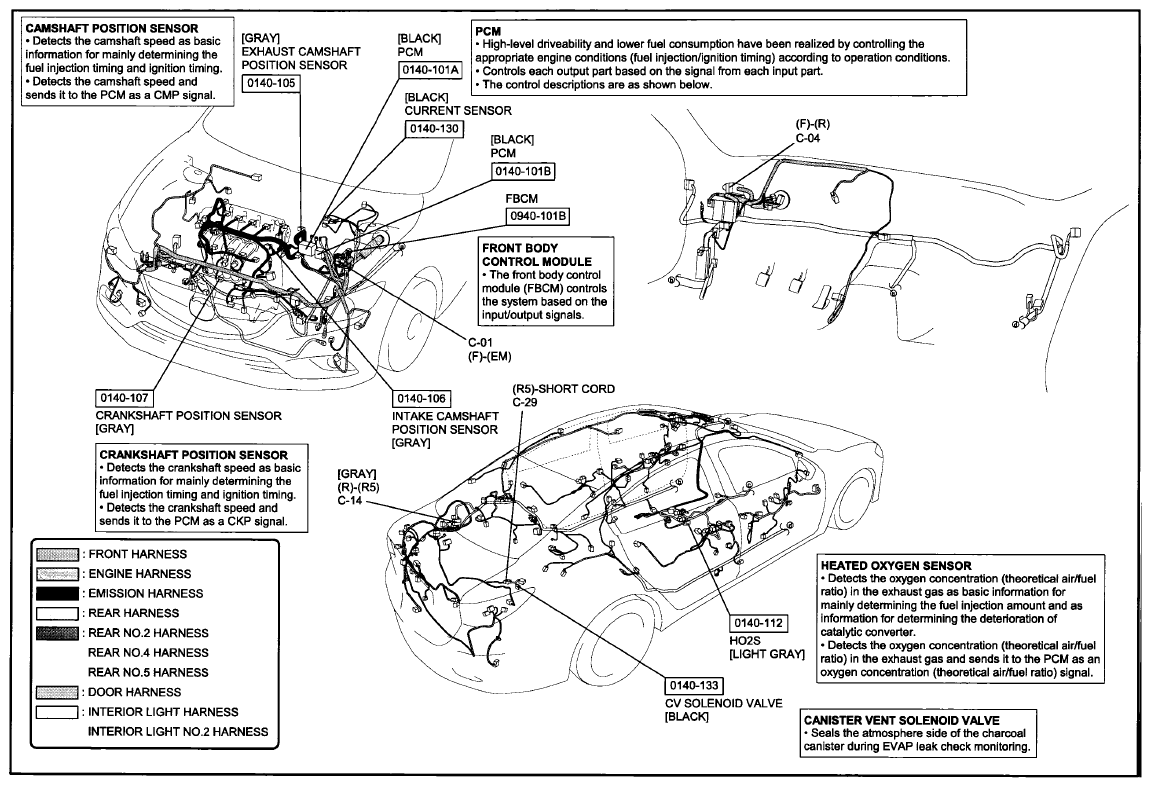

Fig 4: Engine Control System Wiring Harness Connectors (0140-1B)

Courtesy of MAZDA MOTORS CORP.

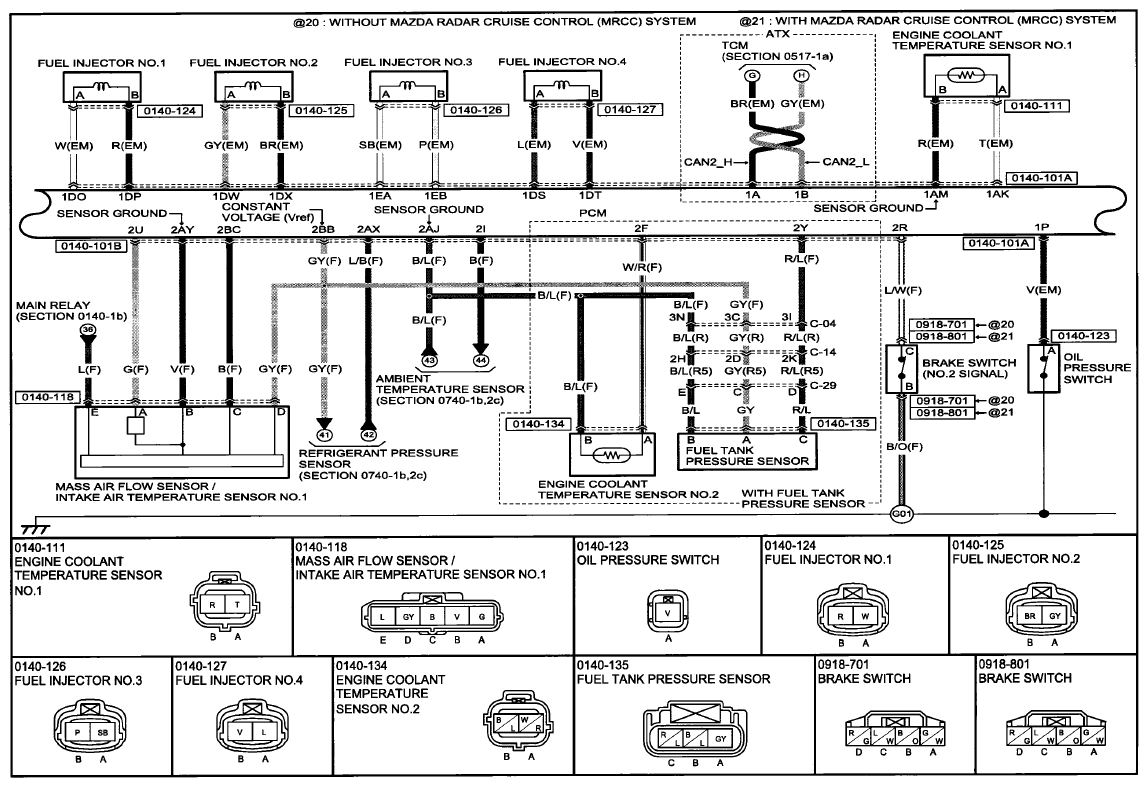

Fig 5: Engine Control System Communication Diagram (0140-1C)

Courtesy of MAZDA MOTORS CORP.

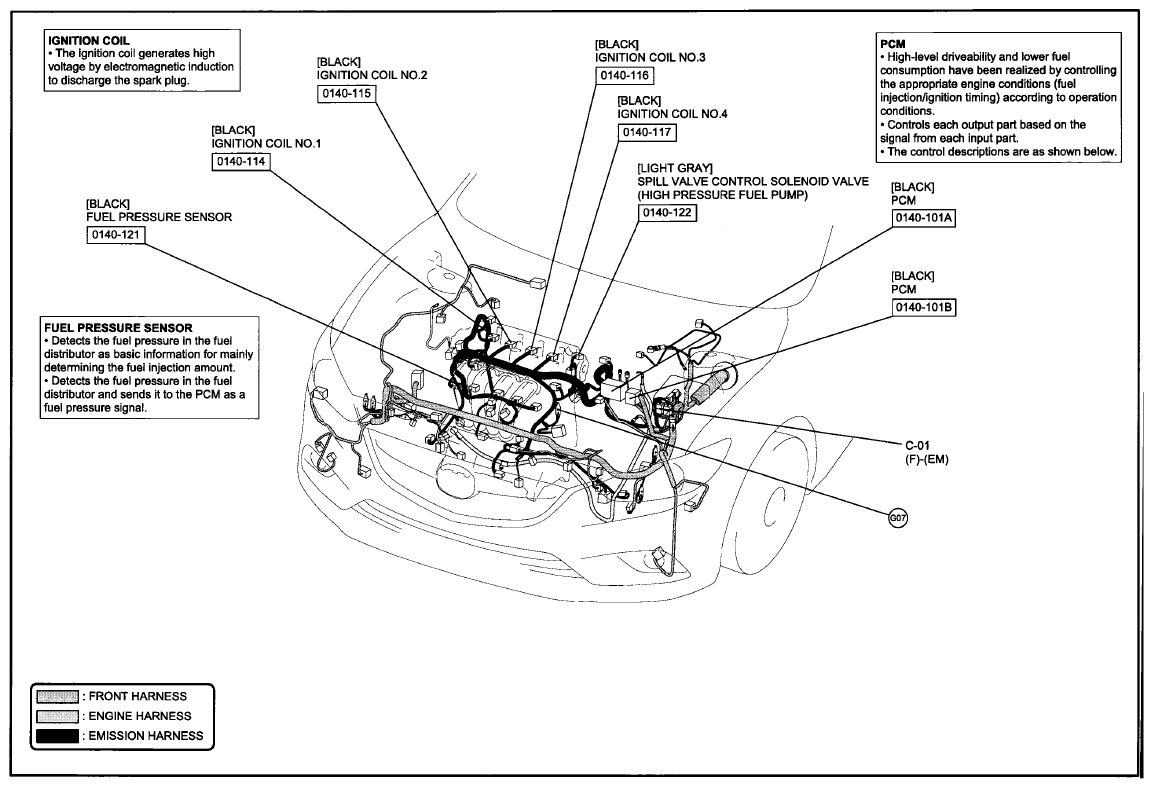

Fig 6: Engine Control System Wiring Harness Connectors (0140-1C)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Engine Control System Communication Diagram (0140-1D)

Courtesy of MAZDA MOTORS CORP.

Fig 8: Engine Control System Wiring Harness Connectors (0140-1D)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Engine Control System Communication Diagram (0140-1E)

Courtesy of MAZDA MOTORS CORP.

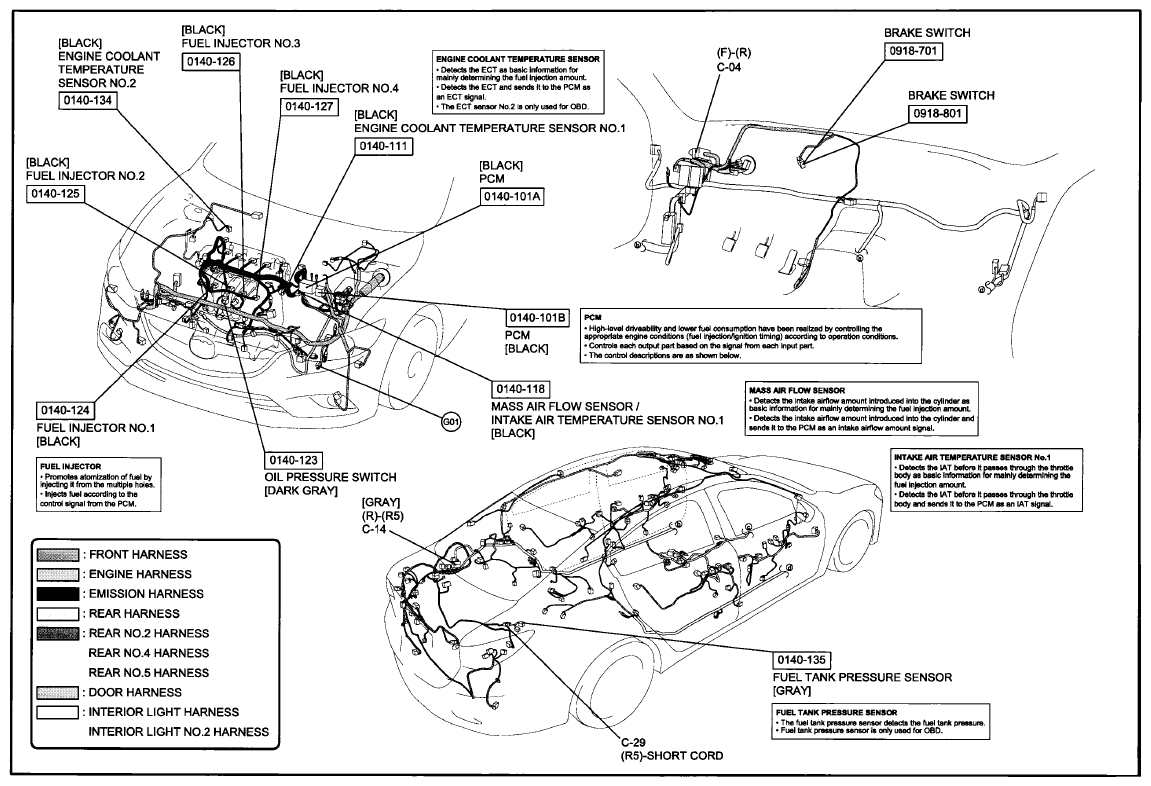

Fig 10: Engine Control System Wiring Harness Connectors (0140-1E)

Courtesy of MAZDA MOTORS CORP.

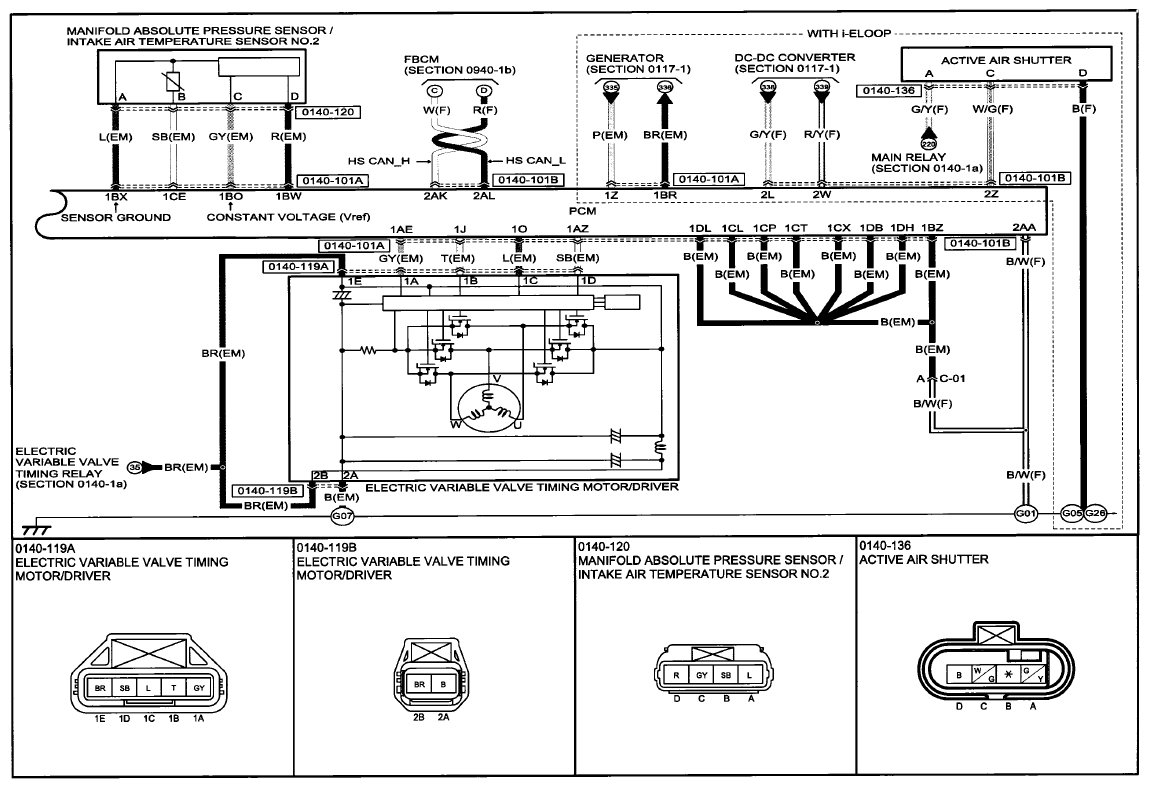

Fig 11: Engine Control System Communication Diagram (0140-1F)

Courtesy of MAZDA MOTORS CORP.

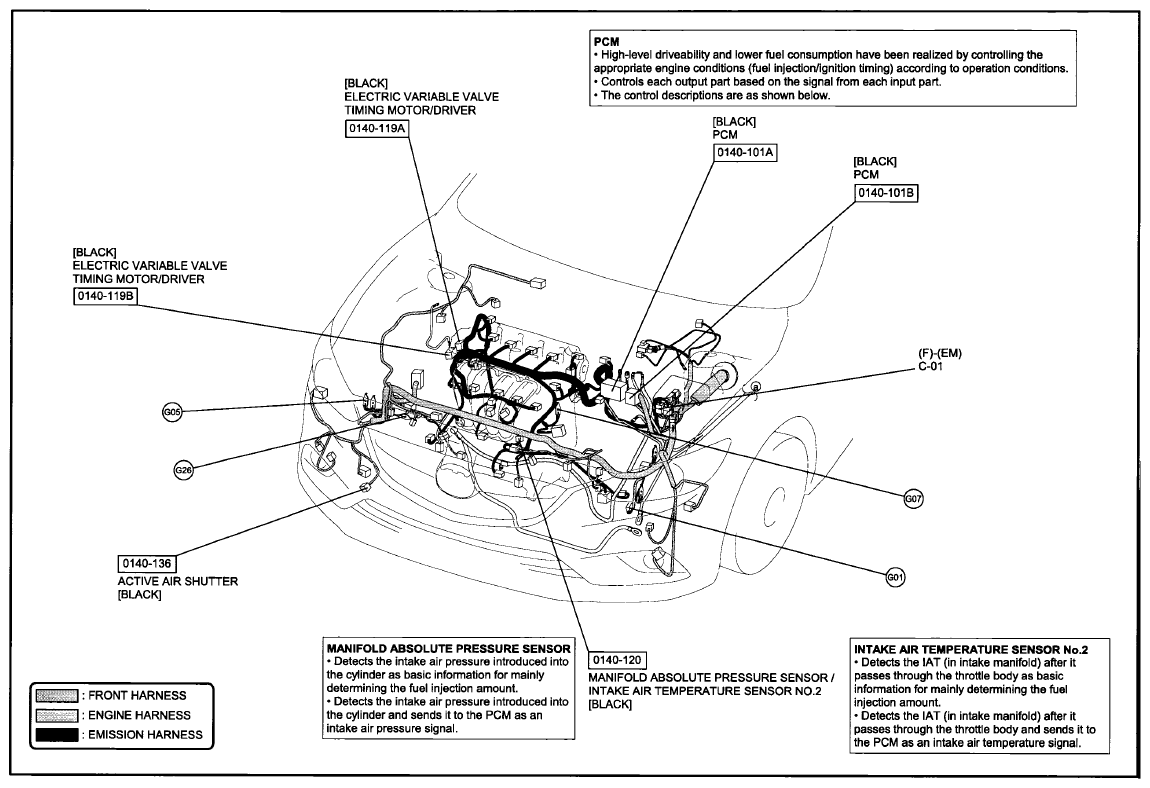

Fig 12: Engine Control System Wiring Harness Connectors (0140-1F)

Courtesy of MAZDA MOTORS CORP.
