Disc Pad (Rear) Replacement: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, pump the brake pedal a few times and inspect the following:
- The disc pad projection is securely installed to the piston groove
- Parking brake lever stroke
- Brake drag

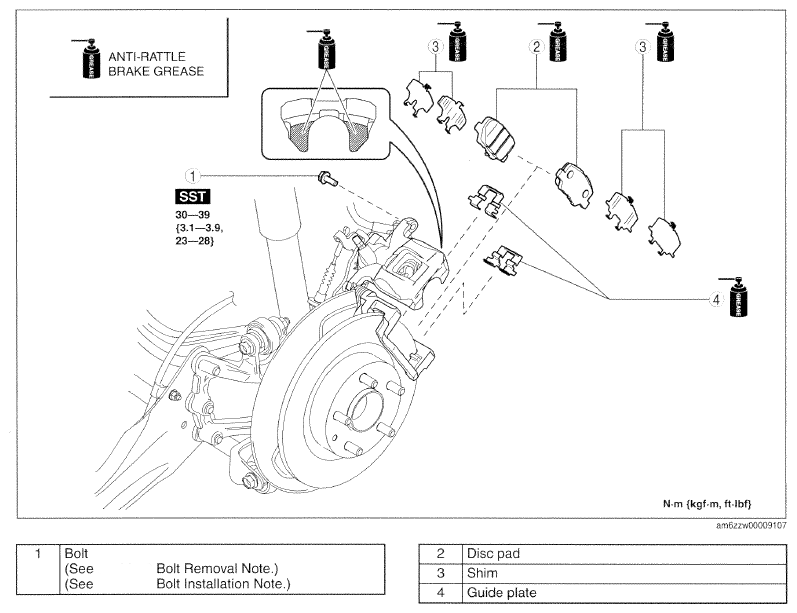

  Fig 1: Disc Pad Replacement Components With Torque Specifications (Rear)
  Courtesy of MAZDA MOTORS CORP.
