Vacuum Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
- Set the PCM wiring harness out of the way.
- Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION .)

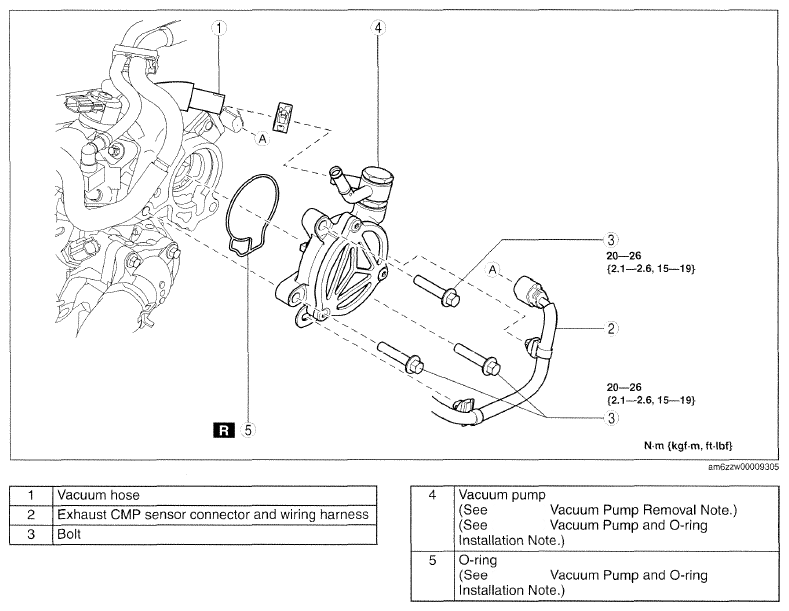

- Remove in the order shown in the table.
- Install in the reverse order of removal.
