Audio Unit Removal/Installation: Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

Fig 1: Identifying Audio Unit And Clean Cloth

Courtesy of MAZDA MOTORS CORP.

Connect all the connectors.
Temporarily position the audio unit on the ribs and align the hole positions of the instrument panel with clips.

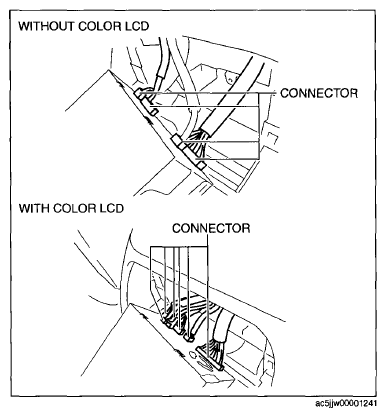

Fig 2: Identifying Audio Unit Connectors
Courtesy of MAZDA MOTORS CORP.

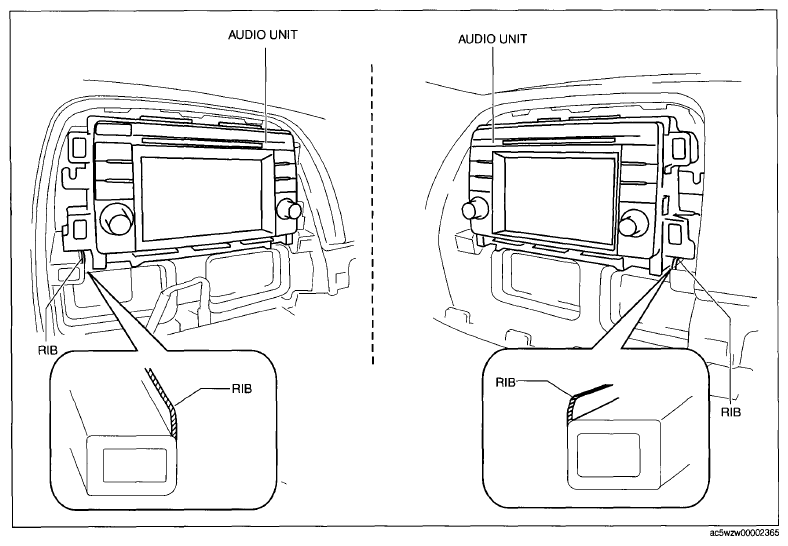

Fig 3: Position Audio Unit On Ribs
Courtesy of MAZDA MOTORS CORP.

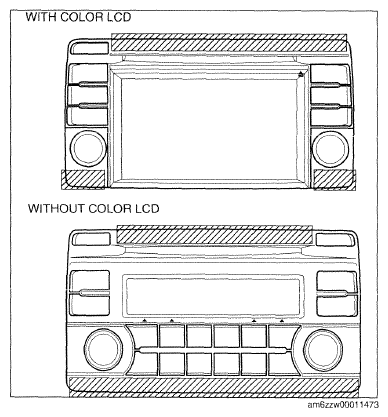

Press the audio unit in the position shown in the figure and engage clips to the instrument panel.
CAUTION:
- If the audio unit switch area and screen are pressed it could cause a malfunction.
Fig 4: Position Audio Unit On Ribs
Courtesy of MAZDA MOTORS CORP.
Install the screws.
Install the bolt.
Install the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
Install the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)

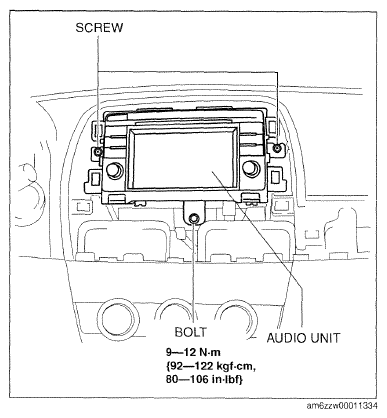

Fig 5: Audio Unit Screw And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
