Front Door Module Panel Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
      NOTE:
      • After removing the front door trim, secure the inner handle using screws so that the procedure is performed smoothly.
  4. Remove bolt A.

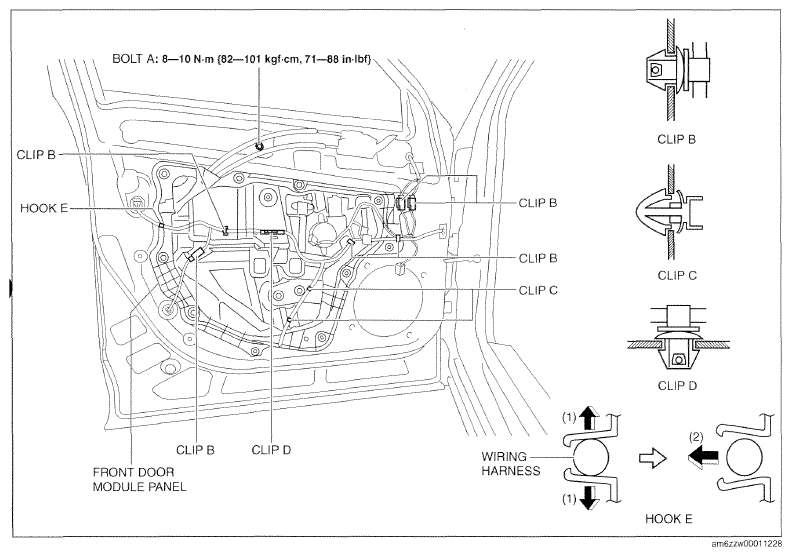

    Fig 1: Removing Front Door Trim
    G09787497Courtesy of MAZDA MOTORS CORP.
  5. Detach front door wiring harness securing clips B, C, and D.
  6. Pull the door wiring harness in the direction of the arrow in the order of (1), (2) and remove it while detaching hook E.
  7. Disconnect the connectors shown in the figure.

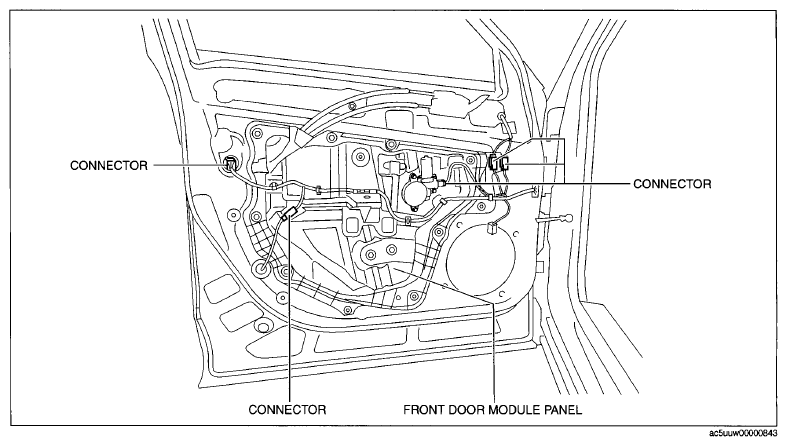

    Fig 2: Disconnecting Front Door Module Panel Connectors
    G09076624Courtesy of MAZDA MOTORS CORP.
  8. Remove screws F.

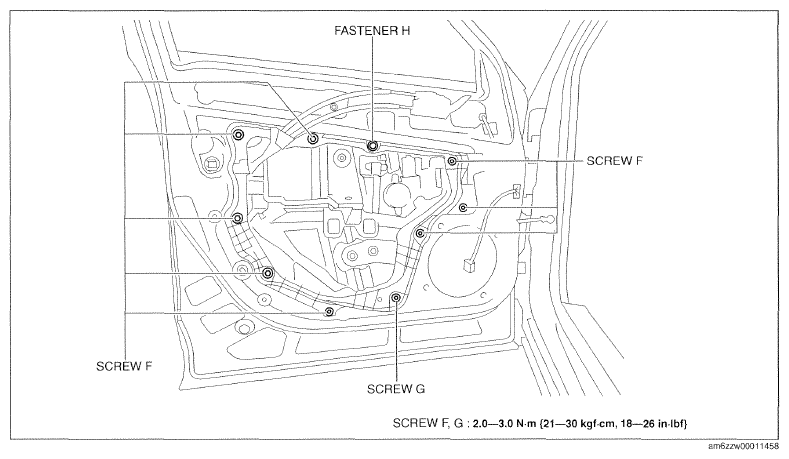

    Fig 3: Screws With Torque Specifications
    G09787499Courtesy of MAZDA MOTORS CORP.
  9. Remove screw G.
  10. Remove fastener H.
  11. Pull the front door module panel in the direction of arrow (3) shown in the figure and remove the protector and pin from the front door inner panel.
    CAUTION:
    • If the protector does not come out easily from the front door inner panel, pulling the front door module panel forcibly may cause the front door module panel to deform. If the protector does not come out easily, remove the front door module panel while gradually removing the protector.
    • If the front power window regulator contacts the front door inner panel during the front door module panel removal, the coating film on the front door inner panel may get scratched, and the front door module panel and front power window regulator could be damaged. Remove the front door module panel while verifying that the front power window regulator and the front door inner panel do not contact each other.

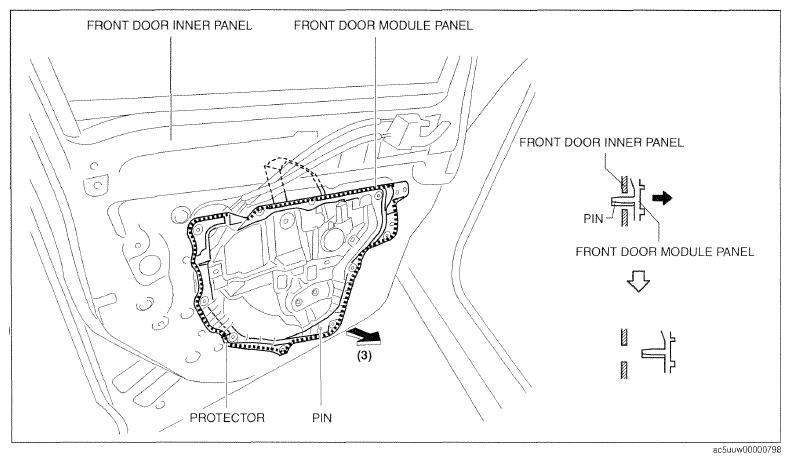

    Fig 4: Removing Front Door Module Panel
    G09787500Courtesy of MAZDA MOTORS CORP.
  12. Move the front door module panel in the direction of arrow (4) shown in the figure so that the upper part of the front power window regulator does not contact the front door inner panel, and remove the front door module panel and the front power window regulator as a single unit.
  13. Remove the front power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  14. Remove the front power window regulator. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
  15. Install in the reverse order of removal.

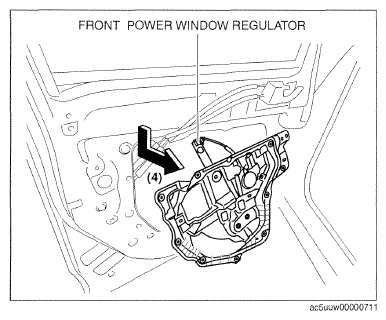

    Fig 5: Removing Front Power Window Regulator
    G09787501Courtesy of MAZDA MOTORS CORP.
