Steering Shift Switch Component Removal Note

Disconnect the steering shift switch wiring harness connector.

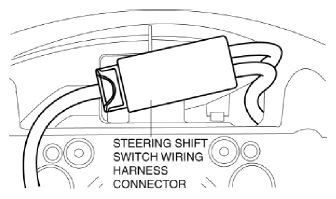

Fig 1: Identifying Steering Shift Switch Wiring Harness Connector
Courtesy of MAZDA MOTORS CORP.
Detach the tabs of the cover in the area circled by a dashed line and open the cover.

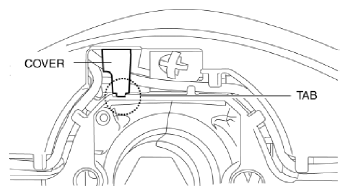

Fig 2: Identifying Cover Tabs
Courtesy of MAZDA MOTORS CORP.
Using a precision flathead screwdriver, release the tab.

Fig 3: Locating Tabs
Courtesy of MAZDA MOTORS CORP.
Remove the steering shift switch component from the gap in the opening of the cover.

Fig 4: Locating Steering Shift Switch Component
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
