No. 1 Engine Mount: Notes

  1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

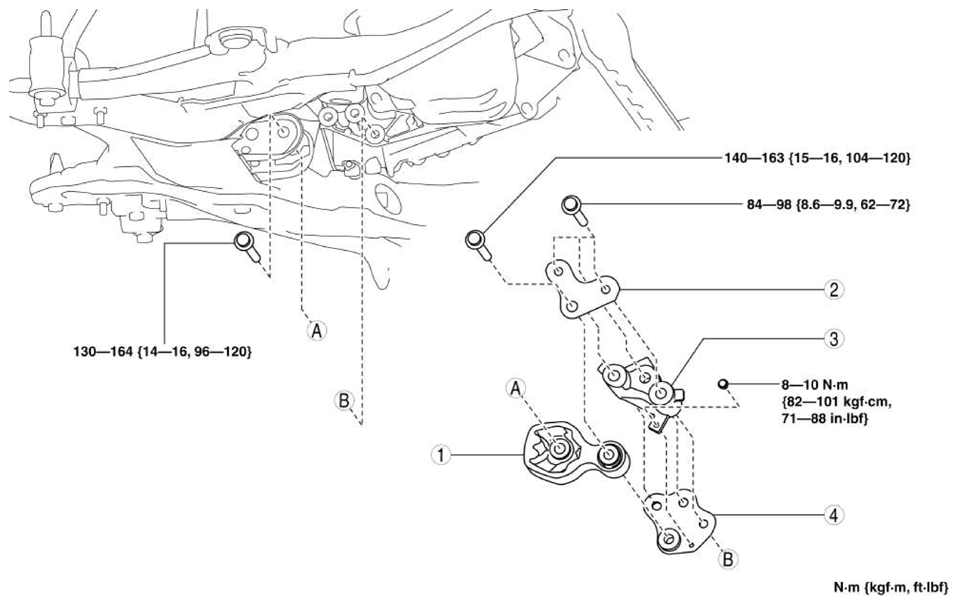

    Fig 1: Engine Mount Related Components With Torque Specifications
    G10985232Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. 1 engine mount rubber
    (See No. 1 engine mount rubber removal note .)
    (See No. 1 engine mount installation note .)
    2 Bracket plate (No. 1)
    (See No. 1 engine mount installation note .)
    3 No. 1 engine mount bracket
    (See No. 1 engine mount installation note .)
    4 Bracket plate (No. 2)
    (See No. 1 engine mount installation note .)
