Plug Hole Plate Removal/Installation: Notes

CAUTION:
  • If the rubber on only one side of the plug hole plate front is lifted up, it could damage the adapter at the location shown in the figure. When removing the plug hole plate, lift up the rubbers at the same time.

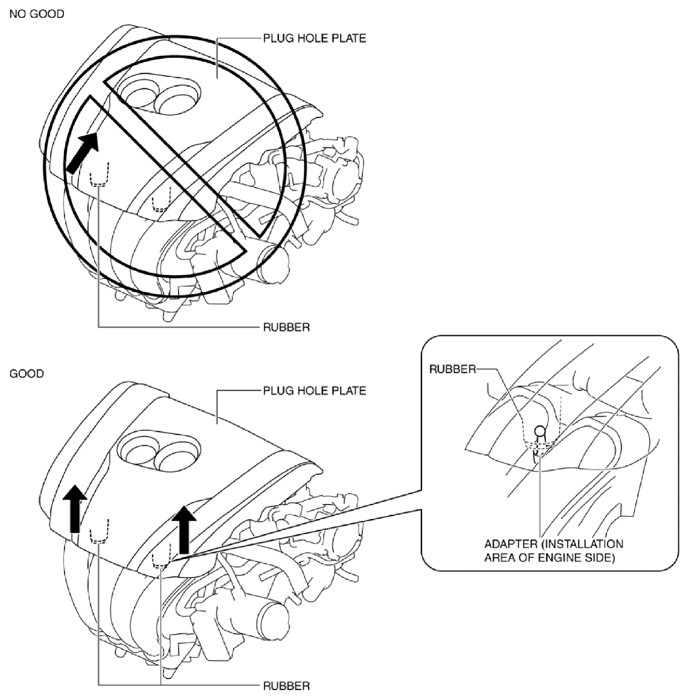

Fig 1: Caution For Removing Plug Hole Plate
G10985035Courtesy of MAZDA MOTORS CORP.
