Steering Shift Switch Removal/Installation

WARNING:

Disconnect the negative battery cable and wait for 1 min or more. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the driver-side air bag module. (Refer to DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Remove the steering wheel. (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

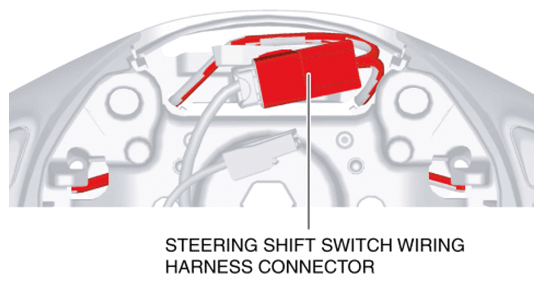

Disconnect the steering shift switch wiring harness connector.

Fig 1: Identifying Steering Shift Switch Wiring Harness Connector
Courtesy of MAZDA MOTORS CORP.

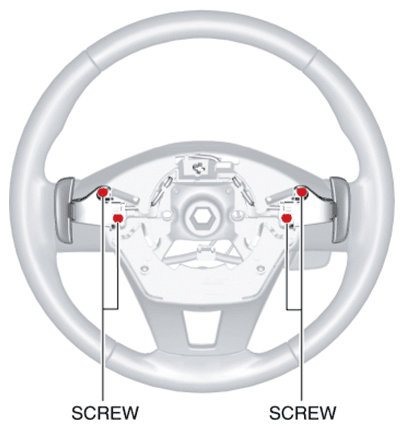

Remove the screw.

Fig 2: Removing Screw
Courtesy of MAZDA MOTORS CORP.

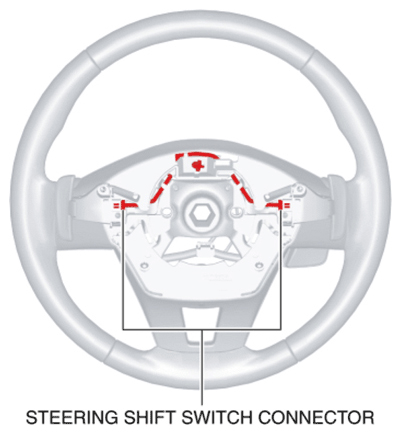

Disconnect the steering shift switch connector.

Fig 3: Identifying Steering Shift Switch Connector
Courtesy of MAZDA MOTORS CORP.

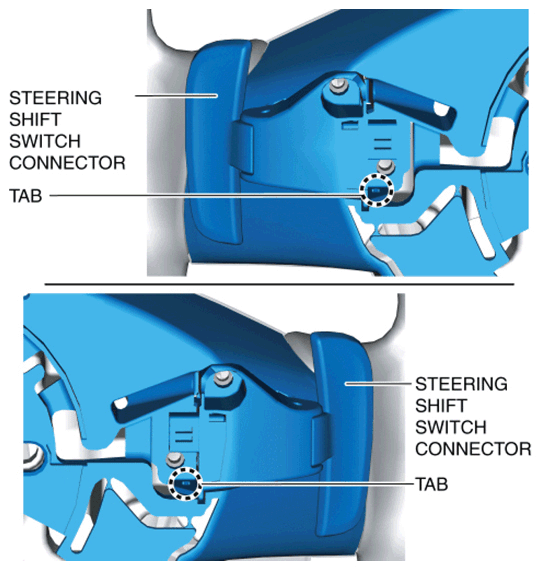

Release the tab shown in the figure and remove the steering shift switch.

Fig 4: Identifying Steering Shift Switch Connector
Courtesy of MAZDA MOTORS CORP.

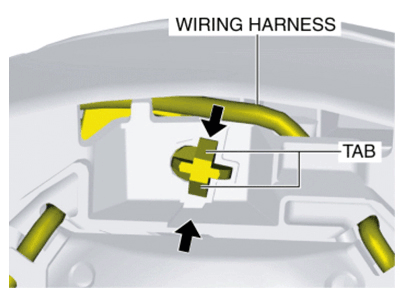

Using a precision flathead screwdriver, release the tab.

Fig 5: Releasing Tab
Courtesy of MAZDA MOTORS CORP.

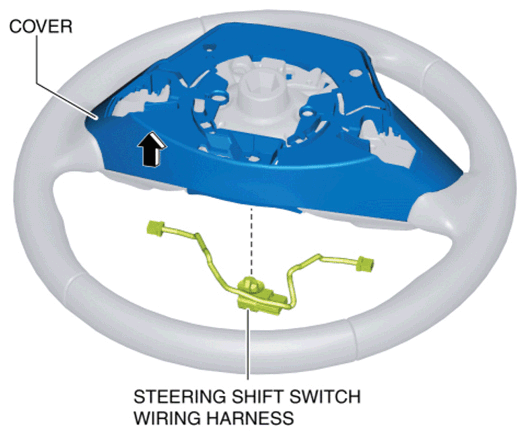

Lift the steering wheel cover up using your hand and remove the steering shift switch wiring harness from the clearance.

Fig 6: Lifting Steering Wheel Cover Up
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
